Auto Detected Configuration (ESC Only)

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Auto Detected Configuration (ESC Only)" in "Vehicle S/W management" with KDS.
 Fig.1 to 4

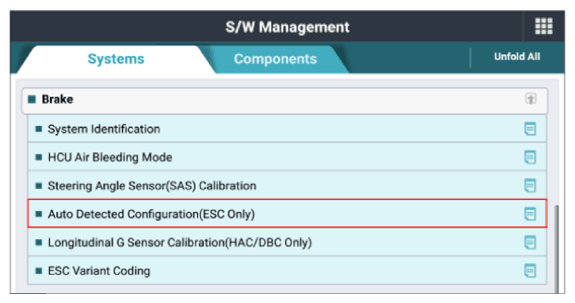

G13666540Courtesy of KIA MOTORS AMERICA, INC.

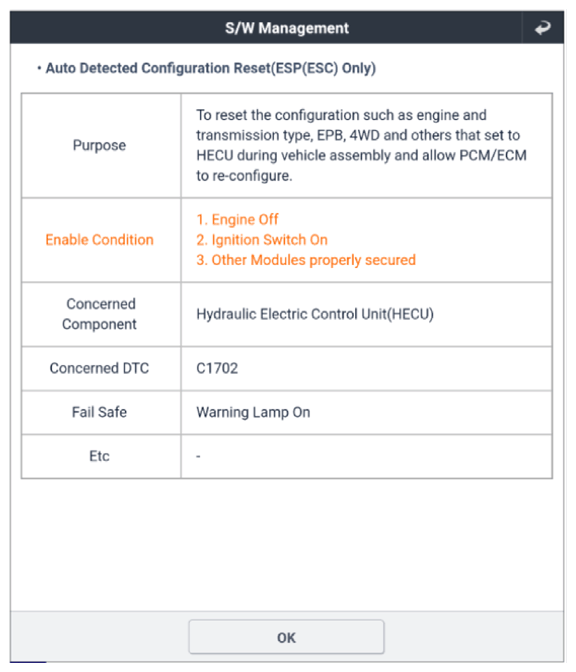

G13666541Courtesy of KIA MOTORS AMERICA, INC.

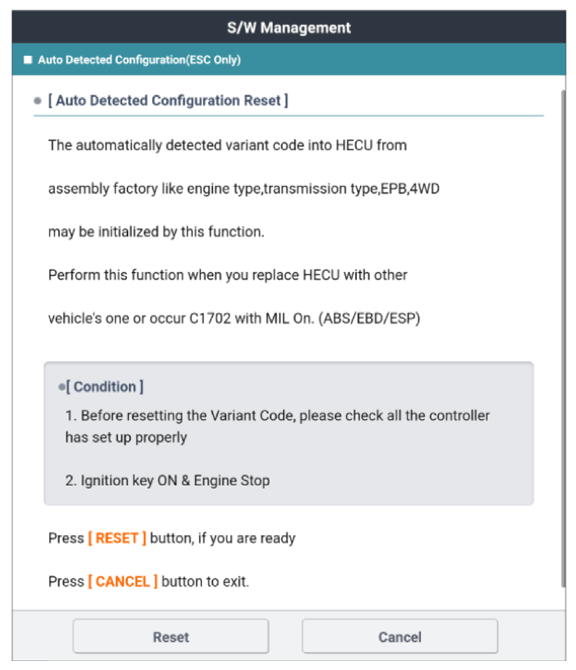

G13666542Courtesy of KIA MOTORS AMERICA, INC.
G13666543Courtesy of KIA MOTORS AMERICA, INC.
