Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

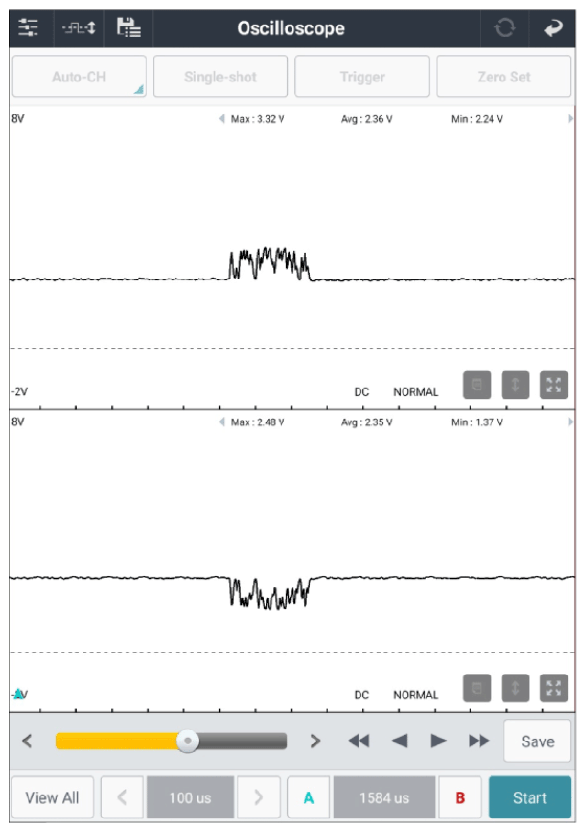

TGS | 5 (DCT L-CAN high) | Chassis ground | - | Fig.1 |
| TGS | 4 (DCT L-CAN low) | Chassis ground | - | ||
|
Electronic oil pump (component side) | 5 (DCT L-CAN high) | Electronic oil pump (component side) | 6 (DCT L-CAN low) | Approx. 120Ω |
| TCU (component side) | 24 (DCT L-CAN high) | TCU (component side) | 25 (DCT L-CAN low) | Approx. 120Ω | |
Good
- Go to next procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
- Check CAN communication circuit for open circuit or short circuit after repair, go to "VERIFICATION OF REPAIR ".
| Module Circuit Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
TGS | 3 (ON/START Input) | Chassis ground | - | Approx. 12V |
|
TGS | 6 (ground) | Chassis ground | - | Approx. below 1Ω |
|
TCU | 24 (DCT L-CAN high) | TGS | 5 (DCT L-CAN high) | Approx. below 1Ω |
|
TCU | 25 (DCT L-CAN low) | TGS | 4 (DCT L-CAN low) | Approx. below 1Ω |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
- Check module circuit for open circuit or short circuit after repair, go to "VERIFICATION OF REPAIR ".
