Monitor DTC Status

Inspection Condition	Inspection Procedure	Reference

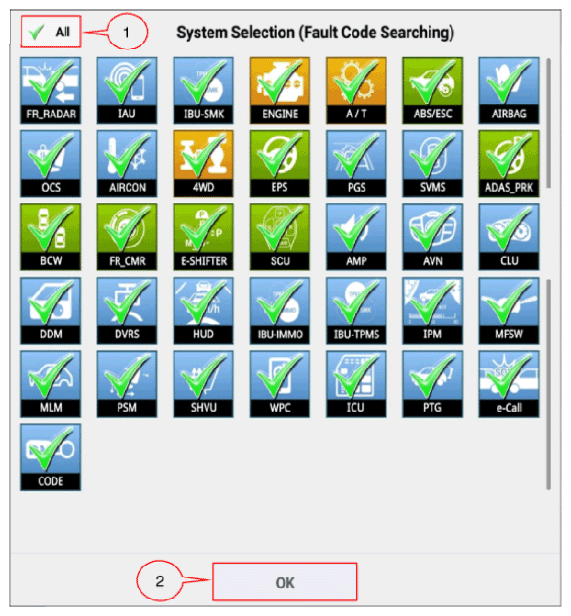

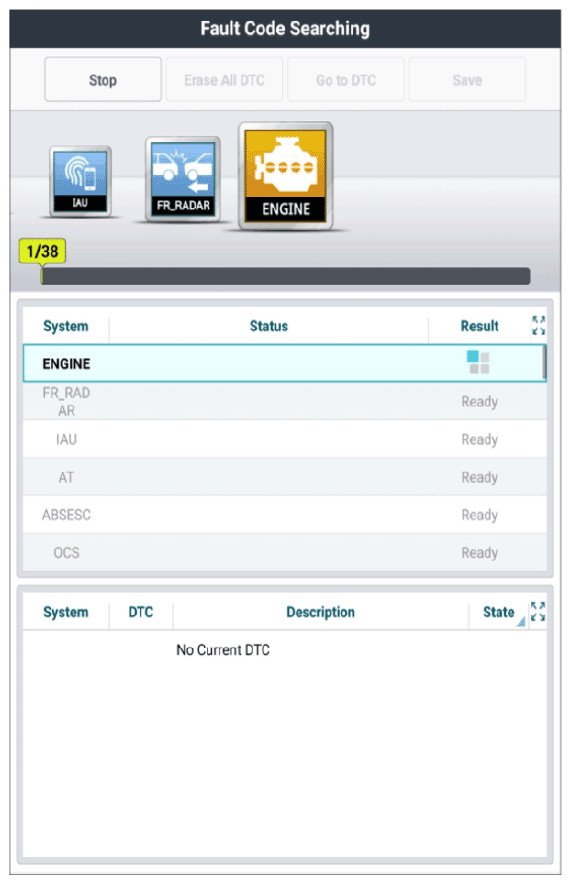

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Select the vehicle model, model year and engine type. Select the entire system. (1) Select a DTC search. (2) Check the selected DTC system.	Fig.1

G13690098

Courtesy of KIA MOTORS AMERICA, INC.

G13690099

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair CAN related faults first, then perform the relevant diagnostic procedure again.
If the fault persists, go to "WIRING INSPECTION " procedure.
