Component Inspection

Inspection Condition	Inspection Procedure	Reference

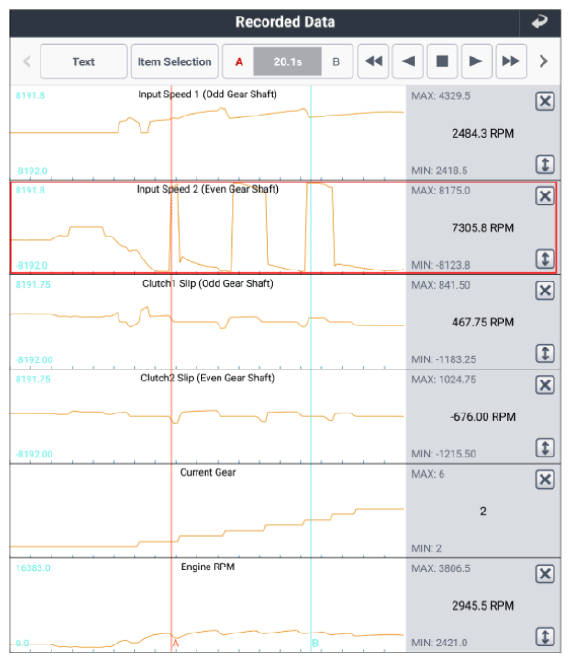

Engine "ON".	Connect KDS to "Data Link Connector (DLC)". Raise the vehicle on the lift, referring to the maintenance instructions. Operate vehicle or system in accordance with enable condition in DTC detecting condition. Monitor selected parameters shown below in "Current Data" with KDS.	Fig.1

G13689943

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.

No Good

Re-do the corresponding diagnostic guide.
If the problem continues, replace the DCT assembly then go to "TCU Neutralization" and "Air bleeding" of S/W management and perform the "VERIFICATION OF REPAIR " procedure.
