DTC P26DF-1C: Sensor Power Supply 'D': General Description

It is an eight-speed layout that optimizes gear placement, an electric oil pump and a high-efficiency wet double clutch that is applied with technologies that enhance efficiency in power transfer. Using the pressure of the oil supplied through the solenoid, move the fork at each end and then gather and combine the gears.

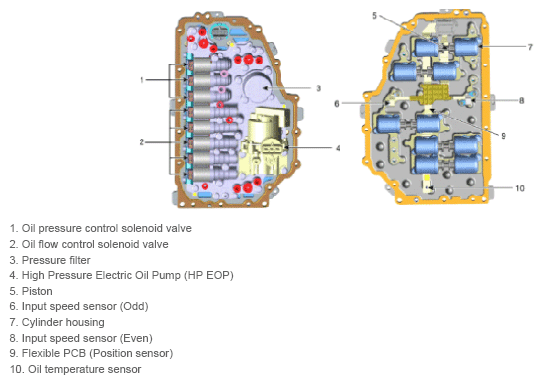

G13689695Courtesy of KIA MOTORS AMERICA, INC.
