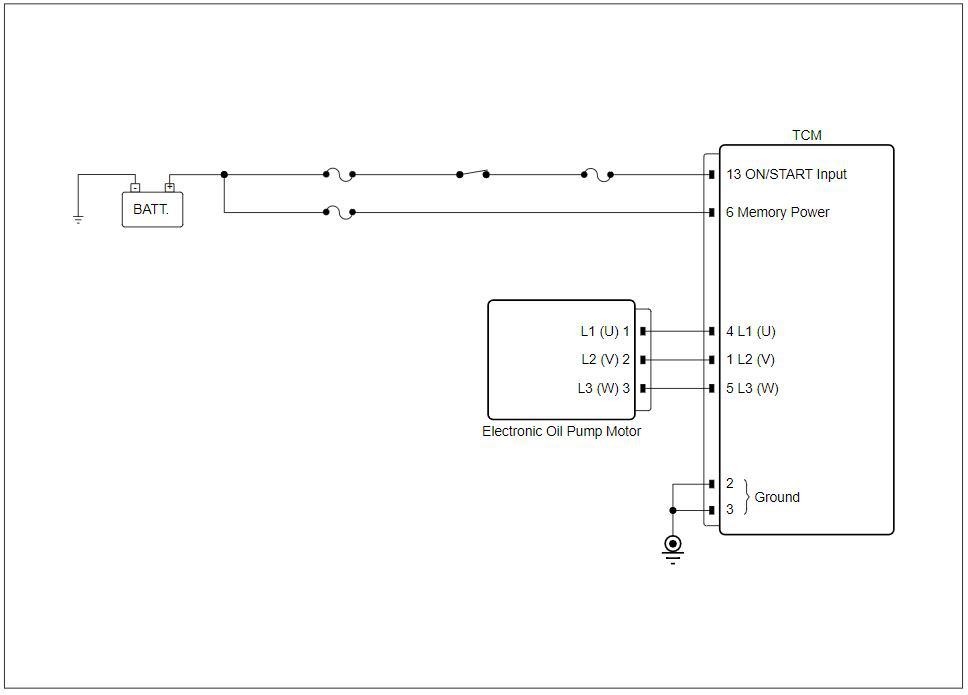

Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
HP EOP | 1 (U) | Chassis ground | - | Approx. 2.6V |
| HP EOP | 2 (V) | Chassis ground | - | B+ | |
| HP EOP | 3 (W) | Chassis ground | - | Approx. 0V | |
|
HP EOP | 1 (U) | Chassis ground | - | ∞ (infinity)Ω |
| HP EOP | 2 (V) | Chassis ground | - | ∞ (infinity)Ω | |
| HP EOP | 3 (W) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- After cooling the HP EOP, go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
- Check circuit for open circuit or short circuit after repair, go to "VERIFICATION OF REPAIR " procedure.
