Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Electronic oil pump motor	2 (Memory power)	Chassis ground	-	B+
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	Electronic oil pump motor	1 (ground)	Chassis ground	-	B+

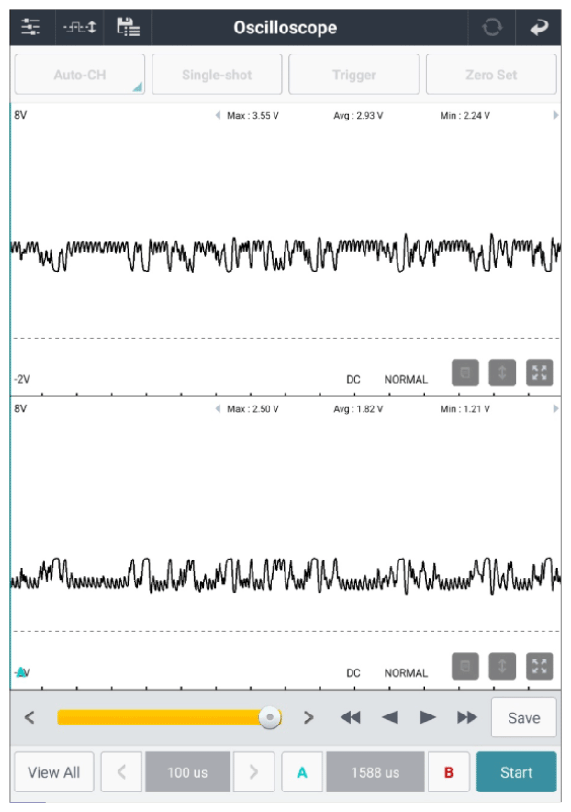

Ignition "ON"	Electronic oil pump motor	3 (PT L-CAN high)	Chassis ground	-	Fig.1
	Electronic oil pump motor	4 (PT L-CAN low)	Chassis ground	-	Fig.1

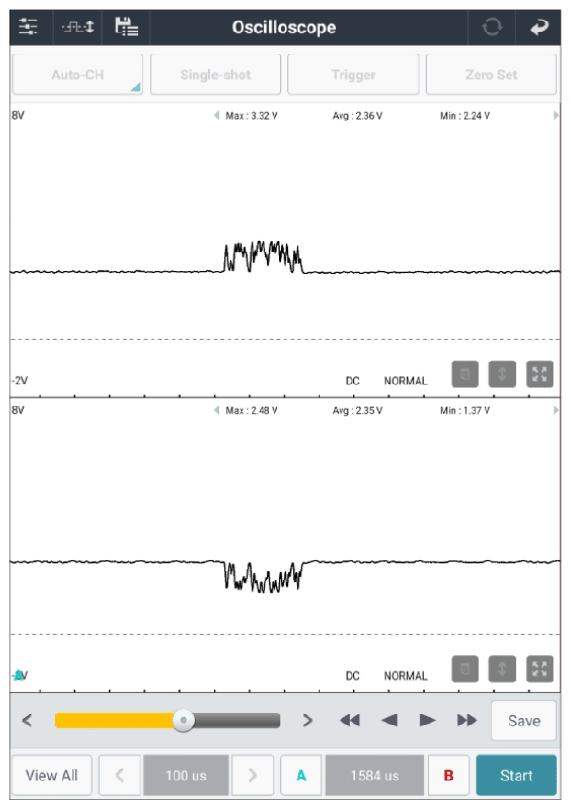

	Electronic oil pump motor	5 (DCT L-CAN high)	Chassis ground	-	Fig.2
	Electronic oil pump motor	6 (DCT L-CAN low)	Chassis ground	-	Fig.2

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
If the problem continues, replace the electric oil pump for lubrication (perform Transmission Learning of S/W Management" procedure) go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
Check circuit for open circuit or short circuit after repair, go to "VERIFICATION OF REPAIR " procedure.
