Home >> Kia >> 2021 >> Sorento EX, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Double Clutch Transmission System Diagnosis - 2.5T (VIN F) (3 Of 3) (Except HEV) >> DTC P193D-13: HF EOP System Fault >> Wiring Inspection >> Component Inspection

Component Inspection

Inspection Condition Inspection Procedure Reference
  1. Start-up "ON".
  2. Shift lever P.
  3. Vehicle speed 0km/h.
  4. Battery normal. (above 10V)
  5. NO DTC.
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Select the "Vehicle S/W Management" about related DTC with KDS.
  3. Select HF EOP operation in S/W Management.
  4. After the final work, go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 4
CAUTION: In case of replacing TCU, Clutch pack, TCU update and TCU learning value is abnormal. Perform following procedures

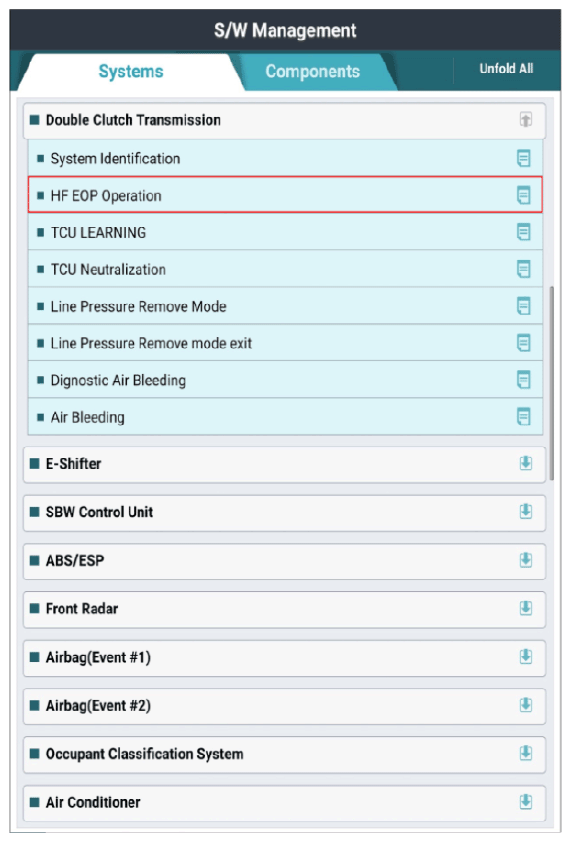

G13689638Courtesy of KIA MOTORS AMERICA, INC.

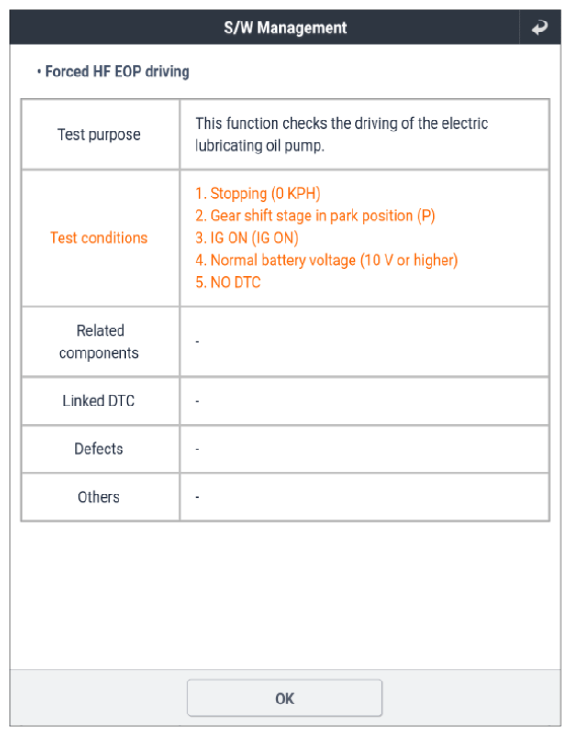

G13689639Courtesy of KIA MOTORS AMERICA, INC.

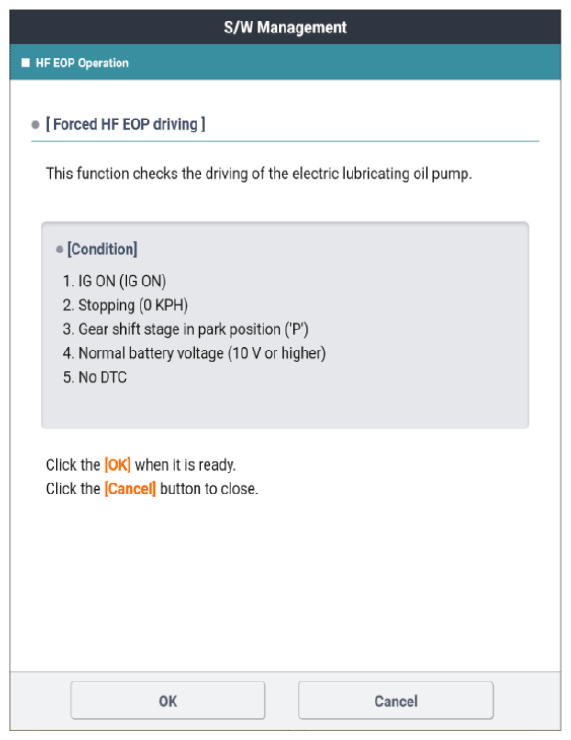

G13689640Courtesy of KIA MOTORS AMERICA, INC.

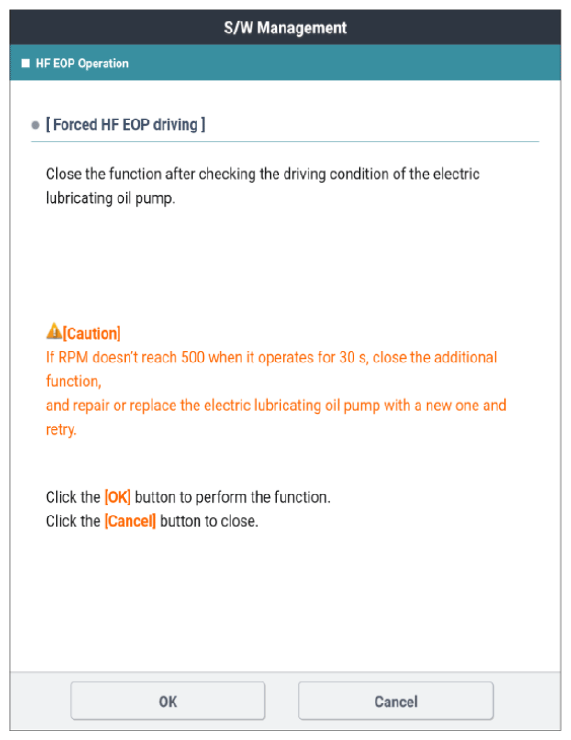

G13689641Courtesy of KIA MOTORS AMERICA, INC.
