Component Inspection: Notes

Inspection Condition Inspection Procedure Reference
  1. Start "ON".
  2. Gear Lever position "P".
  3. Vehicle speed 0 km/h.
  4. Battery normal. (10V or higher)
  5. NO DTC.
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Select the "Vehicle S/W Management" about related DTC with KDS.
  3. Perform "TCU LEARNING" of vehicle S/W Management.
  4. After final operation, go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 6
CAUTION: In case of replacing TCU, Clutch pack, TCU update and TCU learning value is abnormal. Perform following procedures

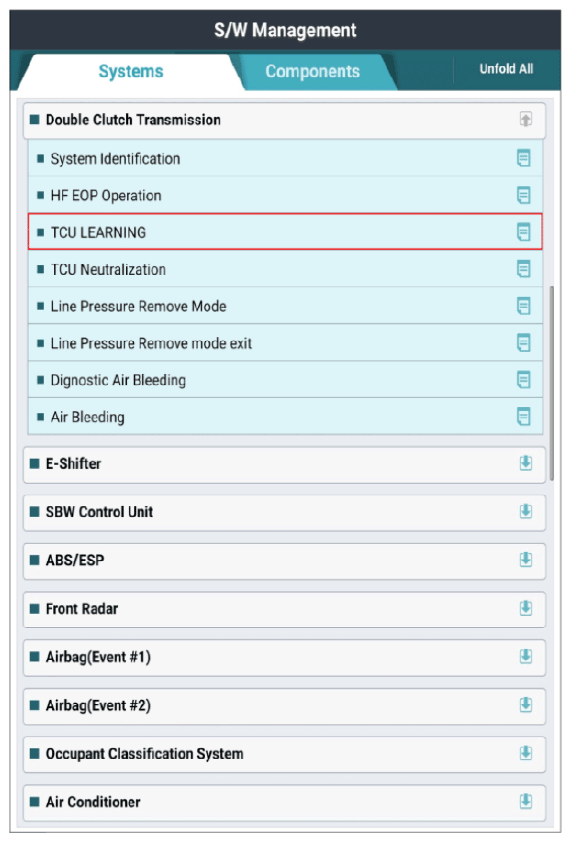

G13689428Courtesy of KIA MOTORS AMERICA, INC.

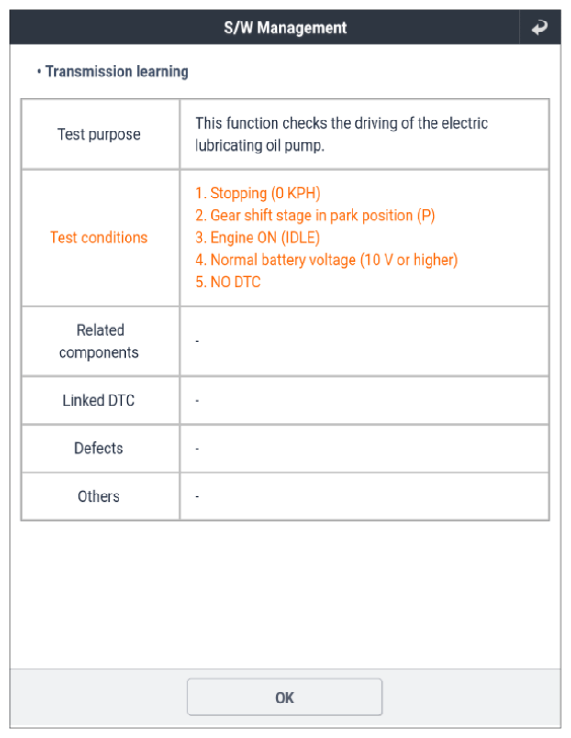

G13689429Courtesy of KIA MOTORS AMERICA, INC.

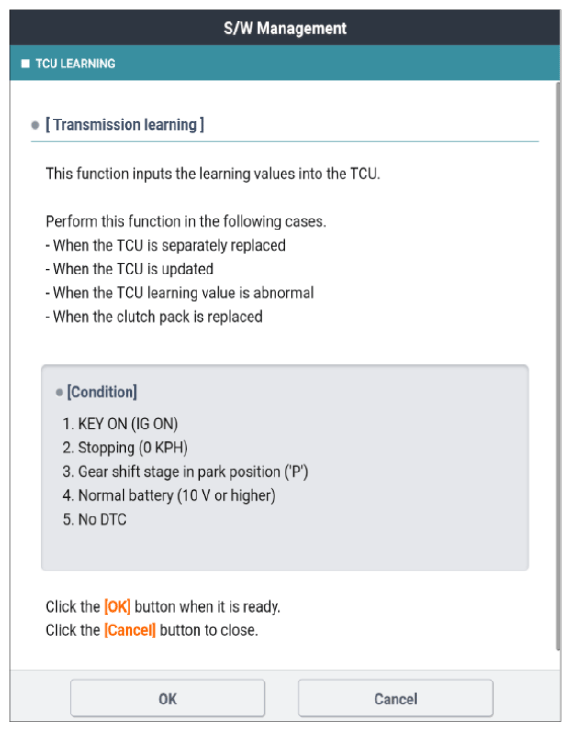

G13689430Courtesy of KIA MOTORS AMERICA, INC.

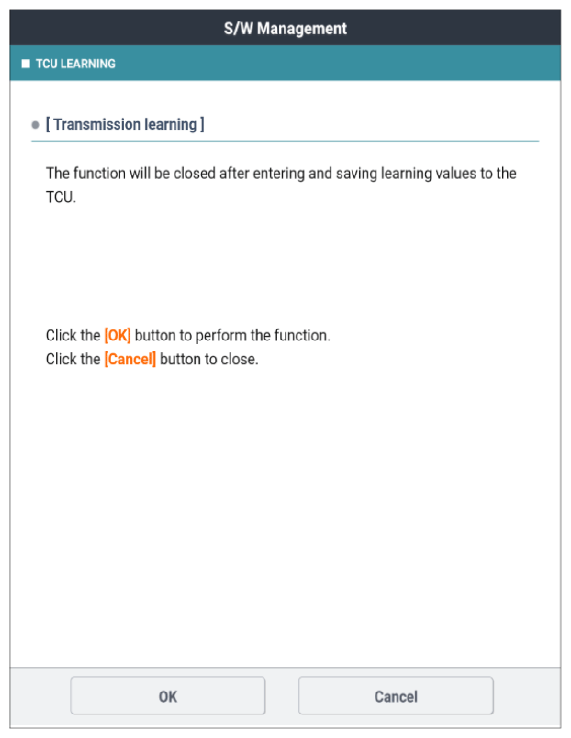

G13689431Courtesy of KIA MOTORS AMERICA, INC.
G13689432Courtesy of KIA MOTORS AMERICA, INC.
G13689433Courtesy of KIA MOTORS AMERICA, INC.
