Component Inspection: Notes

Inspection Condition Inspection Procedure Reference
  1. Start "ON".
  2. Gear Lever position "P".
  3. Vehicle speed 0 km/h.
  4. Battery normal. (10V or higher)
  5. NO DTC.
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Select the "Vehicle S/W Management" about related DTC with KDS.
  3. Perform "TCU LEARNING" of vehicle S/W Management.
  4. After final operation, go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 6
CAUTION: In case of replacing TCU, Clutch pack, TCU update and TCU learning value is abnormal. Perform following procedures

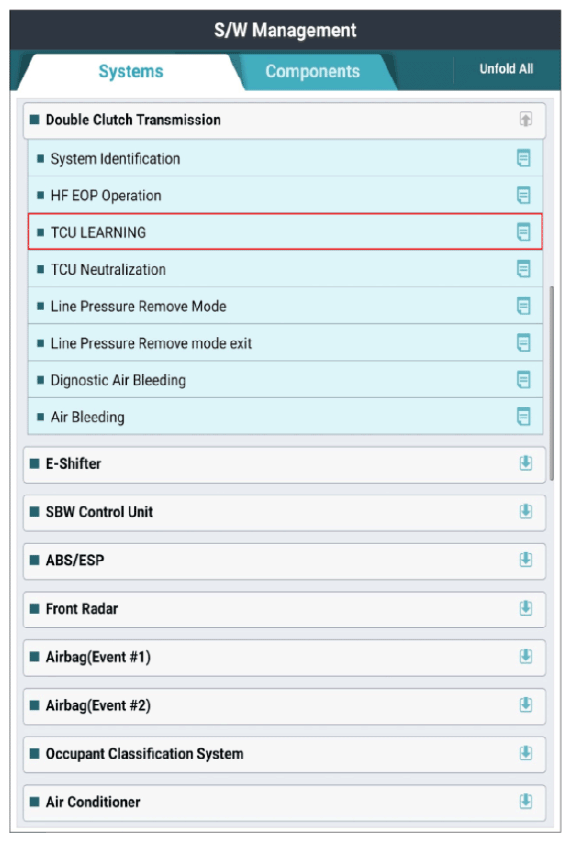

G13689406Courtesy of KIA MOTORS AMERICA, INC.

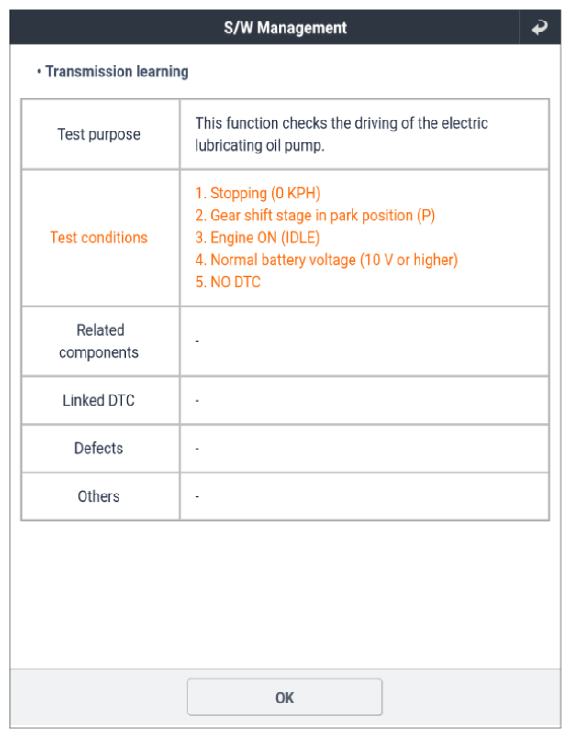

G13689407Courtesy of KIA MOTORS AMERICA, INC.

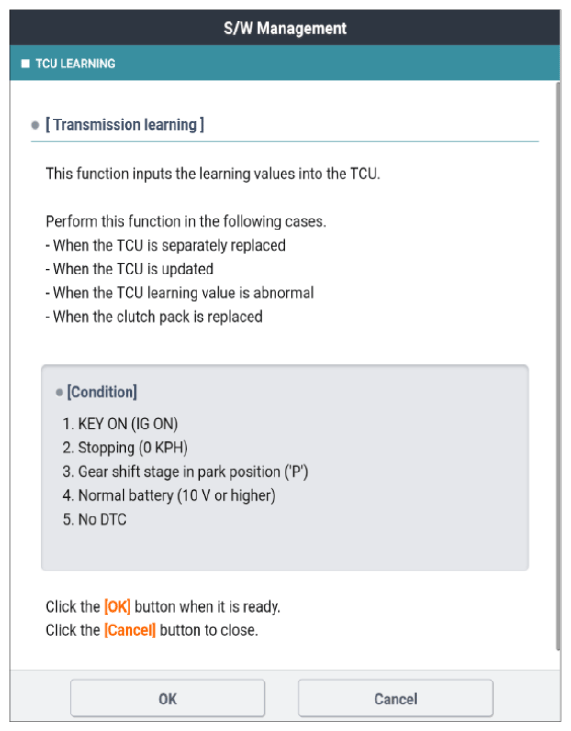

G13689408Courtesy of KIA MOTORS AMERICA, INC.

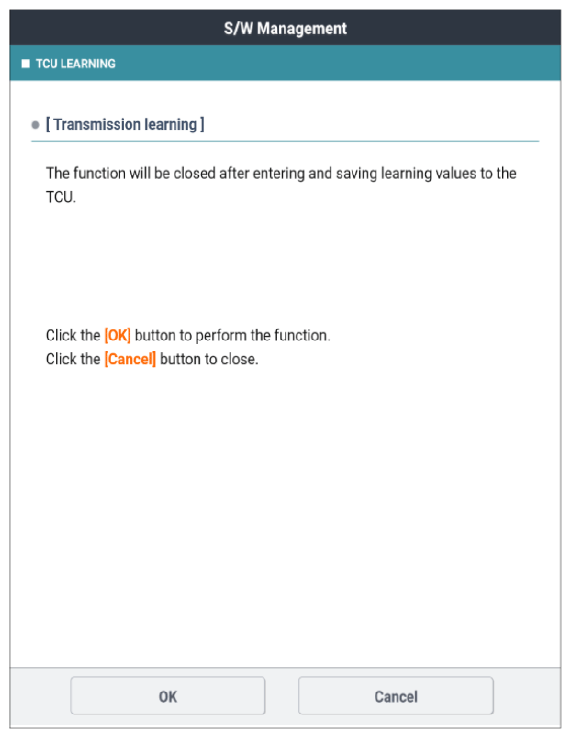

G13689409Courtesy of KIA MOTORS AMERICA, INC.
G13689410Courtesy of KIA MOTORS AMERICA, INC.
G13689411Courtesy of KIA MOTORS AMERICA, INC.
