Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Start "ON".
  2. Gear Lever position "P".
  3. Vehicle speed 0 km/h.
  4. Battery normal. (10V or higher)
  5. NO DTC.
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Select the "Vehicle S/W Management" about related DTC with KDS.
  3. Perform "TCU LEARNING" of vehicle S/W Management.
  4. After final operation, go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 6
CAUTION: In case of replacing TCU, Clutch pack, TCU update and TCU learning value is abnormal. Perform following procedures

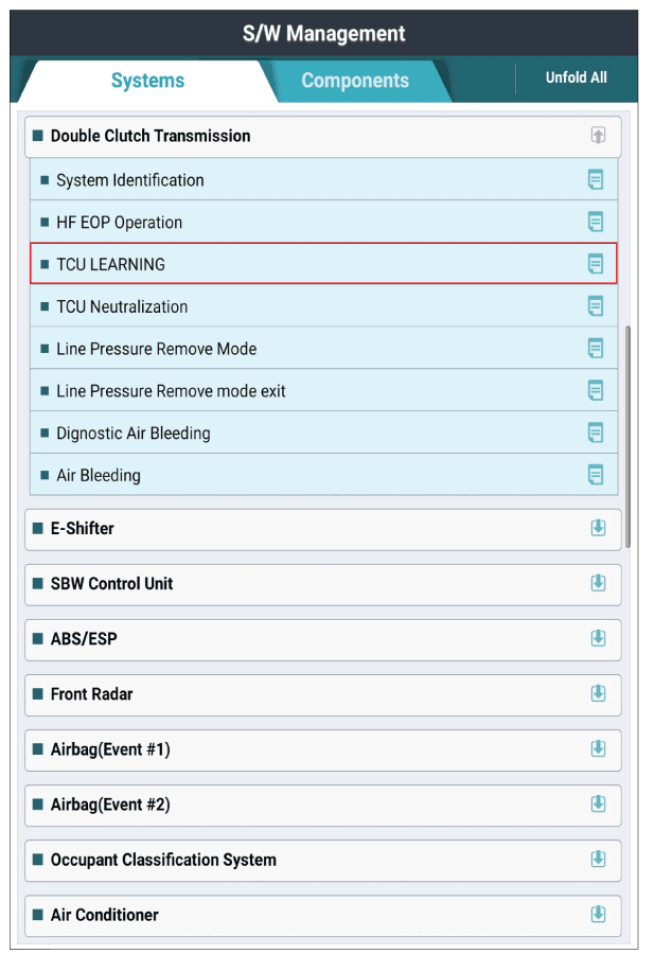

G13117089Courtesy of KIA MOTORS AMERICA, INC.

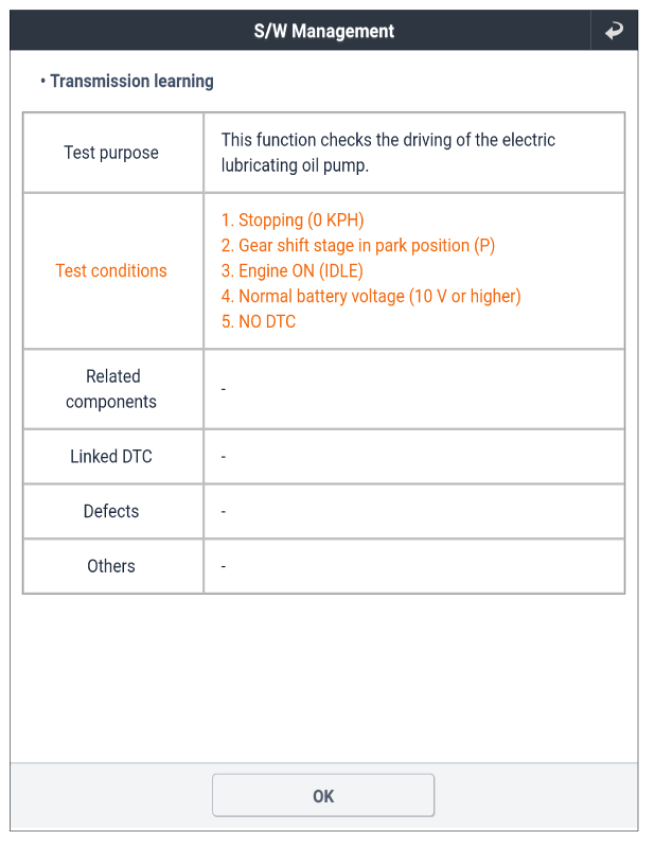

G13117090Courtesy of KIA MOTORS AMERICA, INC.

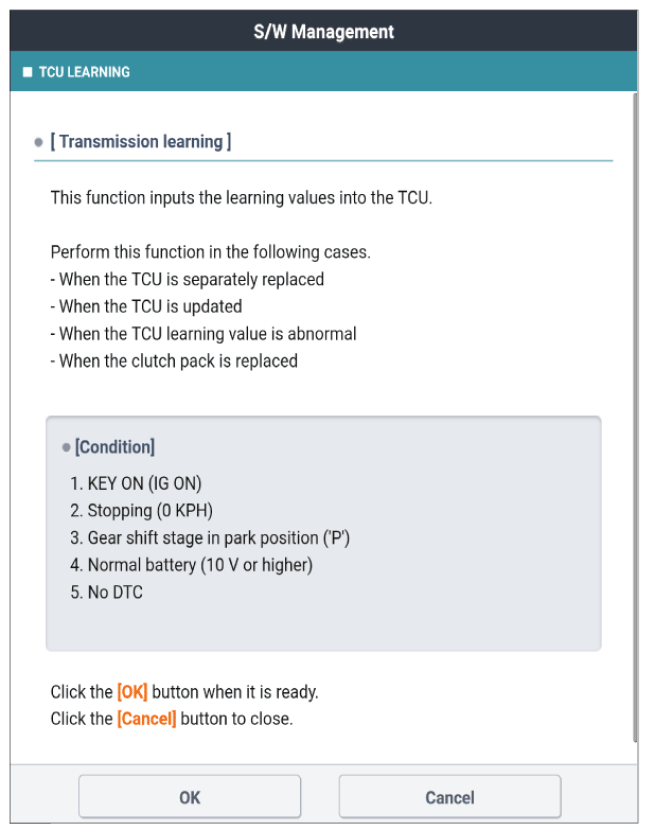

G13117091Courtesy of KIA MOTORS AMERICA, INC.

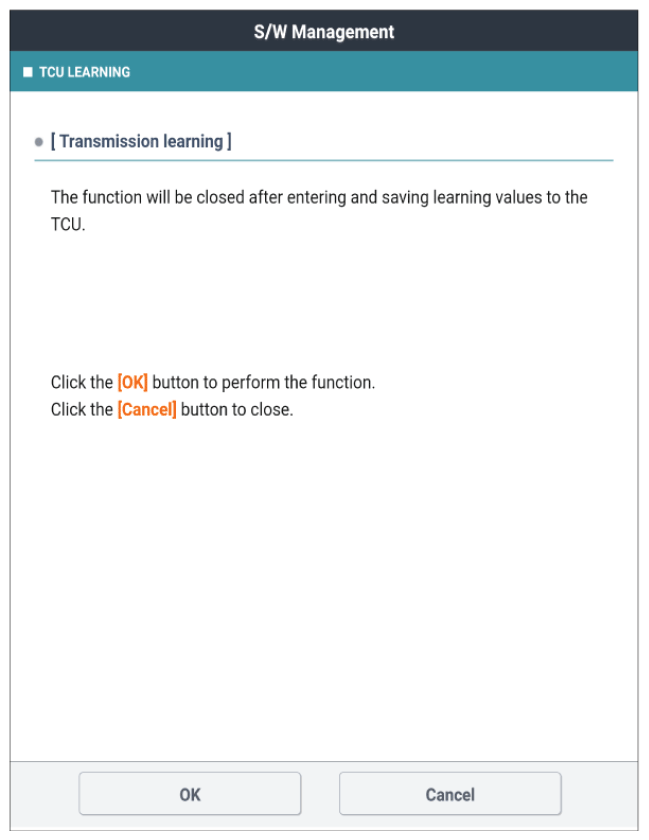

G13117092Courtesy of KIA MOTORS AMERICA, INC.
G13117093Courtesy of KIA MOTORS AMERICA, INC.
G13117094Courtesy of KIA MOTORS AMERICA, INC.

Fig.1 to 6) Transmission Learning S/W Management Steps
