Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

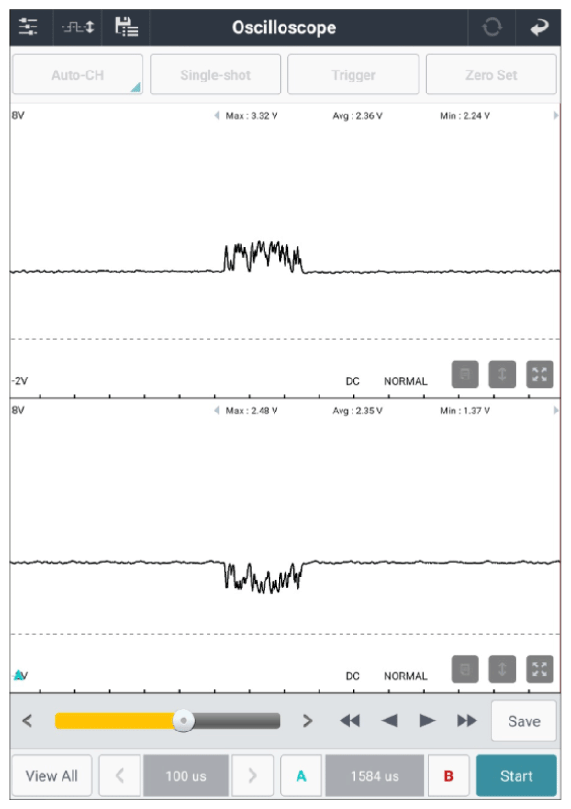

TGS wiring side | 5 (DCT L-CAN high) | Chassis ground | - | Fig.1 |
| TGS wiring side | 4 (DCT L-CAN low) | Chassis ground | - | ||
|
Component side of electric oil pump | 5 (DCT L-CAN high) | Component side of electric oil pump | 6 (DCT L-CAN low) | Approx. 120Ω |
| TCU wiring side | 24 (DCT L-CAN high) | TCU wiring side | 25 (DCT L-CAN low) | Approx. 120Ω | |
Good
- Go to next procedure.
No Good
- After repair or replacement if necessary, go to "VERIFICATION OF REPAIR " procedure.
- After repair, check CAN communication circuit for open circuit or short circuit then go to "VERIFICATION OF REPAIR " procedure.
| Module Circuit Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
TGS wiring side | 3 (ON/START power) | Chassis ground | - | Approx. 12V |
|
TGS wiring side | 6 (ground) | Chassis ground | - | Approx. below 1Ω |
|
TCU wiring side | 24 (DCT L-CAN high) | TGS wiring side | 5 (DCT L-CAN high) | Approx. below 1Ω |
|
TCU wiring side | 25 (DCT L-CAN low) | TGS wiring side | 4 (DCT L-CAN low) | Approx. below 1Ω |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- After repair or replacement if necessary, go to "VERIFICATION OF REPAIR " procedure.
- Check the module circuit for open circuits or short circuits after repair, go to "VERIFICATION OF REPAIR " procedure.
