Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

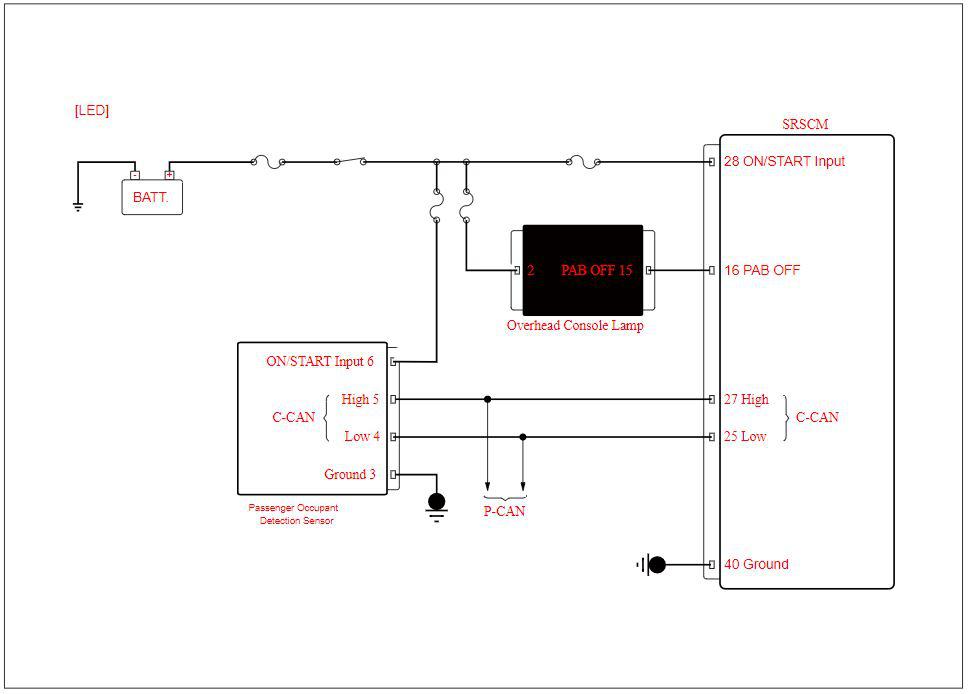

Overhead console lamp connector (Bulb/LED) | 2 (power) | Chassis ground | - | B+ |
|
SRSCM connector | 16 (PAB off) | Chassis ground | - | Over 2.3V |
|
SRSCM connector | 16 (PAB on) | Chassis ground | - | Approx. below 2.3V |
|

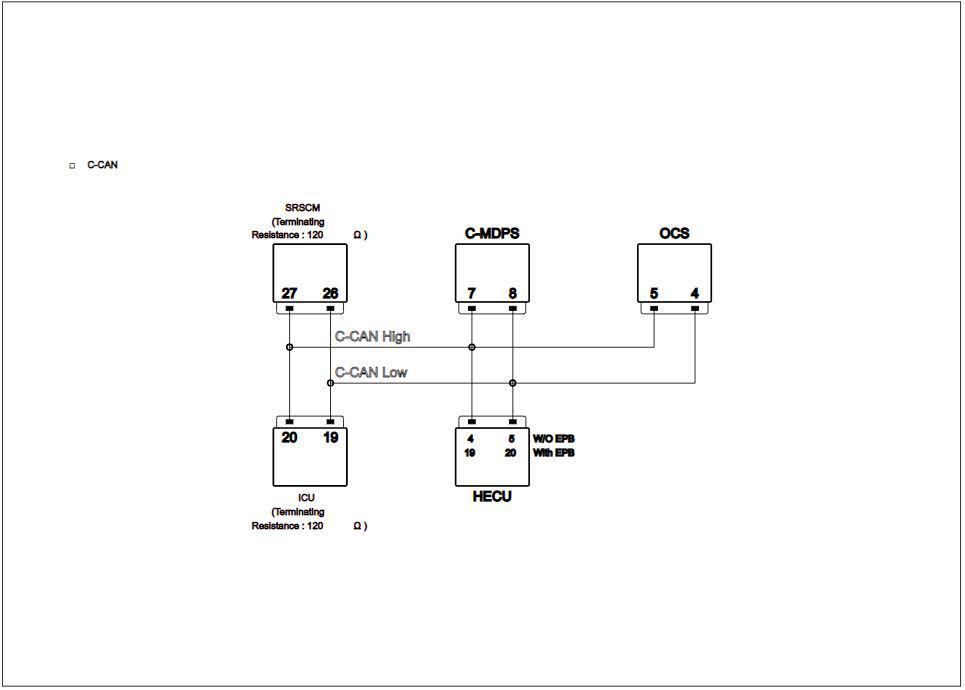

SRSCM (component side) | 27 (C-CAN high) | SRSCM (component side) | 26 (C-CAN low) | Approx. 120Ω |
| ICU (component side) | 20 (20 C-CAN high) | ICU (component side) | 19 (C-CAN low) | Approx. 120Ω | |
|

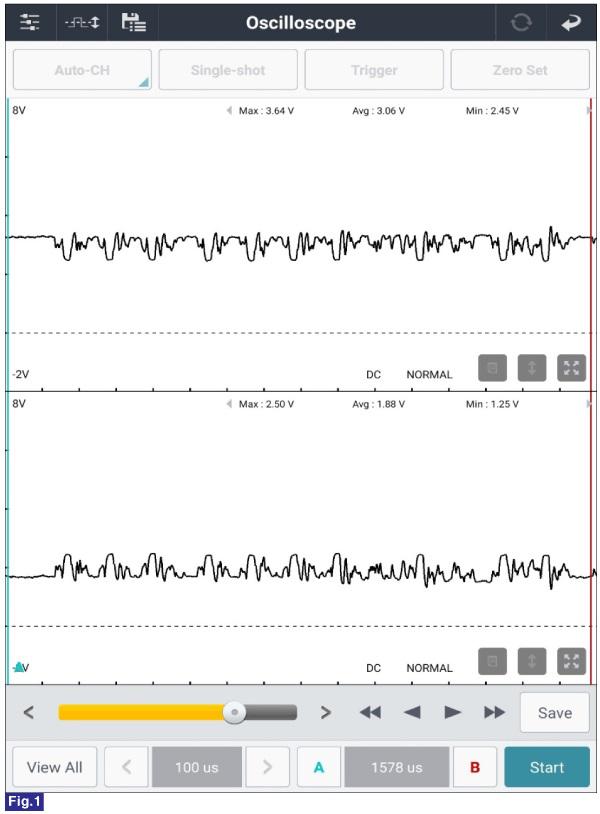

SRSCM connector | 27 (C-CAN high) | Chassis ground | - | Fig. 1 |
| SRSCM connector | 26 (C-CAN low) | Chassis ground | - | ||
|
SRSCM connector | 27 (C-CAN high) | ICU connector | 20 (C-CAN high | Approx. below 1Ω |
| SRSCM connector | 26 (C-CAN low) | ICU connector | 19 (C-CAN low) | Approx. below 1Ω | |
| OCS ECU connector | 5 (C-CAN high) | ICU connector | 20 (C-CAN high | Approx. below 1Ω | |
| OCS ECU connector | 4 (C-CAN low) | ICU connector | 19 (C-CAN low) | Approx. below 1Ω | |
Good
- Check telltale lamp and connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification Of Repair " procedure.
No Good
- Check airbag fuse, passenger compartment junction block, harness between junction block and SRSCM. Repair as necessary and go to "Verification Of Repair " procedure.
