ACU Variant Coding

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. ACU variant coding (Off-line type on KDS-this can be used when not connecting to internet) in the "Vehicle S/W Management" with KDS.
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS and verify that any DTC is stored.
 Fig.1 to 7
G13666220Courtesy of KIA MOTORS AMERICA, INC.

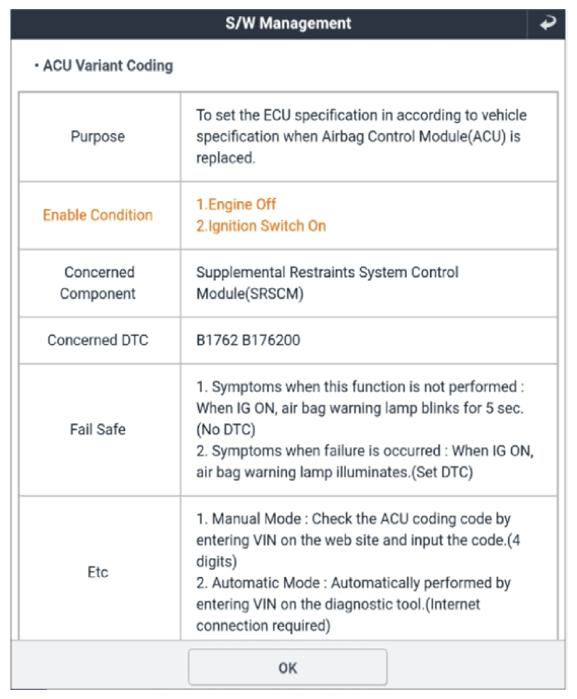

G13666221Courtesy of KIA MOTORS AMERICA, INC.
G13666222Courtesy of KIA MOTORS AMERICA, INC.
G13666223Courtesy of KIA MOTORS AMERICA, INC.
G13666224Courtesy of KIA MOTORS AMERICA, INC.
G13666225Courtesy of KIA MOTORS AMERICA, INC.
G13666226Courtesy of KIA MOTORS AMERICA, INC.
