Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Squib Circuit Inspection

1. Ignition "OFF".
2. Disconnect the battery (-) cable and wait for 5 minutes or more.
3. Remove the DKAB module and connect the dummy and dummy adapter to the DKAB module connector.
4. Connect the battery (-) cable and ignition "ON" and wait for 30s or more.
5. Connect KDS to Data Link Connector (DLC) and clear DTC with KDS and diagnose again.
6. Are any DTCs stored in the system?

   Good

   • Go to next procedure.

   No Good

   • If no problems were found with the circuits or connectors, replace the DKAB module and go to "VERIFICATION OF REPAIR " procedure.

   Main Harness Circuit Inspection
   Inspection Condition	(+) Probe		(-) Probe		Specification
   	Connector	Terminal	Connector	Terminal
   Ignition "OFF". Disconnect the battery (-) cable and wait at least for five minutes. Disconnect the electrical connector(s) from the concerned component.	DKAB connector	1 (high)	SRSCM connector	14 (high)	Approx. below 1Ω
   	DKAB connector	2 (low)	SRSCM connector	15 (low)	Approx. below 1Ω
   	DKAB connector	1 (high)	Chassis ground	-	∞ (infinity)Ω
   	DKAB connector	2 (low)	Chassis ground	-	∞ (infinity)Ω

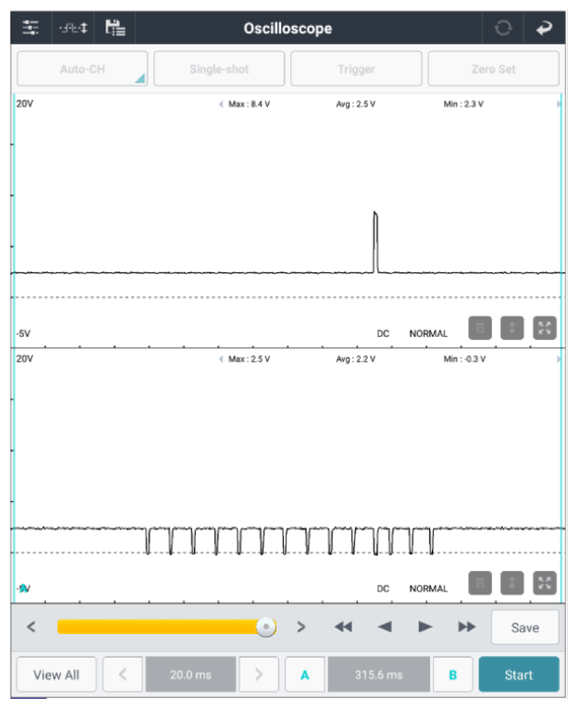

   Connect the SRSCM main connector. Connect the battery (-) terminal cable to the battery. Ignition "ON".	DKAB connector	1 (high)	Chassis ground	-	Fig.1
   	DKAB connector	2 (low)	Chassis ground	-

   Courtesy of KIA MOTORS AMERICA, INC.

   Good

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace SRSCM and then go to "VERIFICATION OF REPAIR " procedure.

   No Good

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace SRSCM main harness and then go to "VERIFICATION OF REPAIR " procedure.
