Rear Muffler

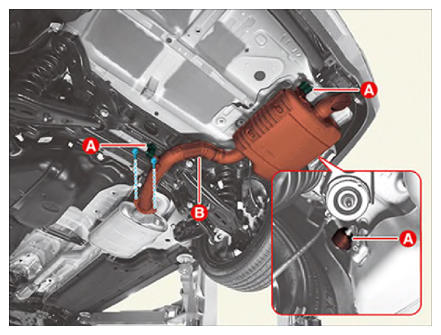

  1. Remove the rear muffler.
    1. Remove the rear muffler hanger (A).
    2. Remove the rear muffler (B).

      Tightening torque:

      39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

      G13664416Courtesy of KIA MOTORS AMERICA, INC.
  2. Install in the reverse order of removal.
    NOTE: When installing, replace with new gaskets.
