Front Muffler

Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

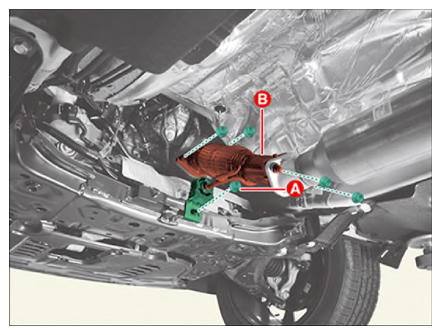

1. Remove the front muffler hanger nut (A).

   Tightening torque:

   30.4 - 46.1 N.m (3.1 - 4.7 kgf.m, 22.4 - 34.0 lb.ft)

2. Remove the front muffler (B).

   Tightening torque:

   39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.
