Removal and Installation

Disconnect the battery negative (-) terminal.
Remove the air duct and air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

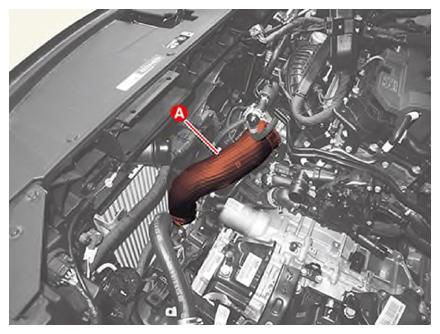

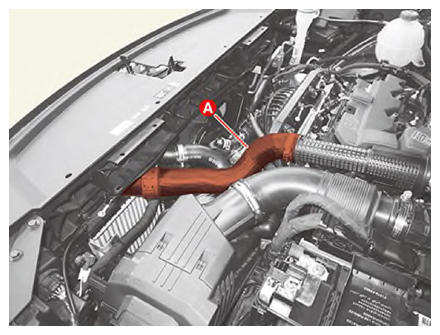

Disconnect the intercooler inlet hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the intercooler outlet hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information

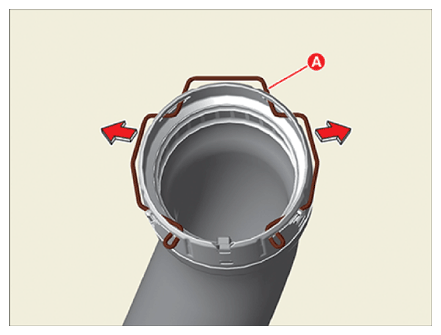

When disconnect the intercooler outlet hose, pull out the quick connector clamp (A) in the direction of the arrow as shown below.

Courtesy of KIA MOTORS AMERICA, INC.

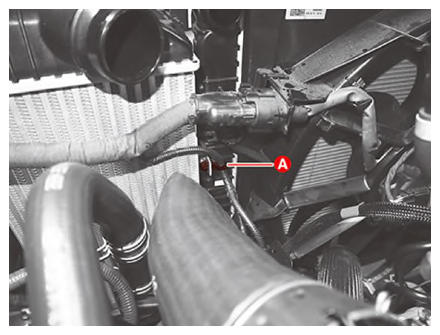

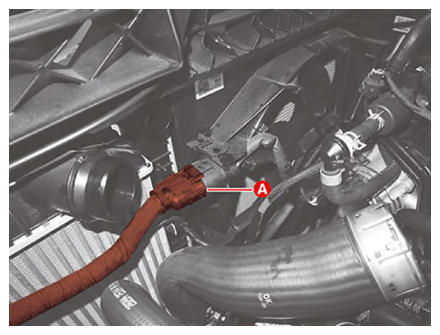

Disconnect the cooling fan connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

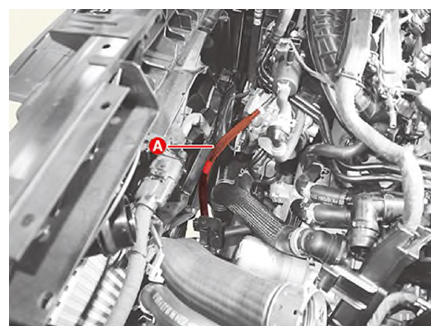

Disconnect the recirculation control valve (RCV) vacuum hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

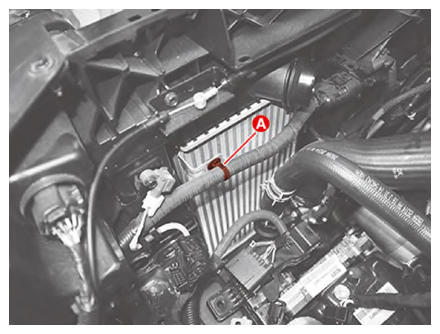

Disconnect the wiring hold clip (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper assembly.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")
Remover the front bumper beam assembly.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER BEAM ASSEMBLY ")

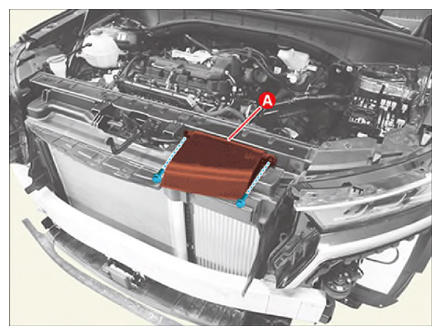

Remove the air intake shield (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

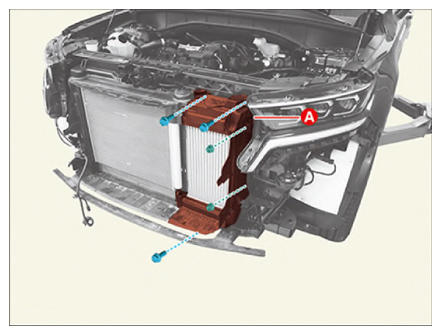

Remove the intercooler air guard (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

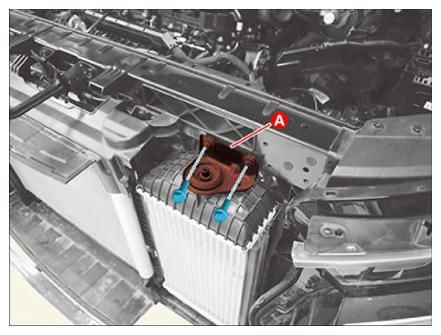

Remove the intercooler upper mounting bracket (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

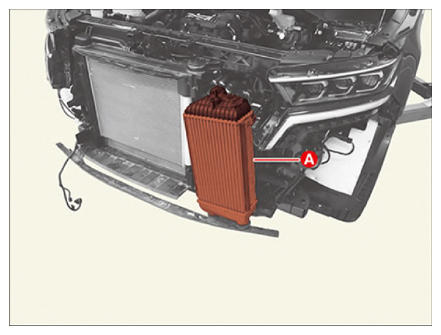

Remove the intercooler (A) from the vehicle.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
