Removal and Installation

  1. Disconnect the battery negative (-) terminal.
  2. Remove the engine cover.

    (Refer to Engine And Transaxle Assembly - "ENGINE COVER ")

  3. Remove the air duct and air cleaner assembly.

    (Refer to Intake And Exhaust System - "AIR CLEANER ")

  4. Remove the engine room under cover.

    (Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

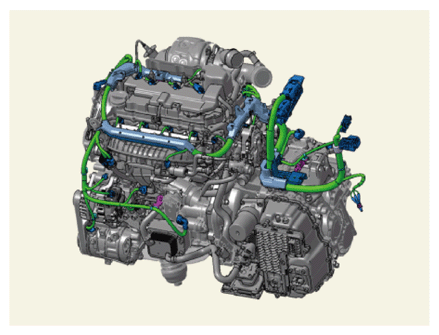

  5. Remove the engine wiring connectors and harness clamps around the intake manifold and then remove the connector brackets and wiring protector.
    G13664348Courtesy of KIA MOTORS AMERICA, INC.

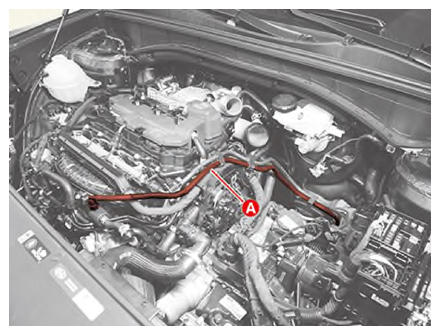

  6. Disconnect the purge control solenoid valve (PCSV) hose (A).
    G13664349Courtesy of KIA MOTORS AMERICA, INC.

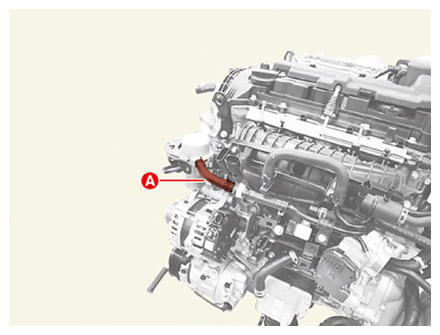

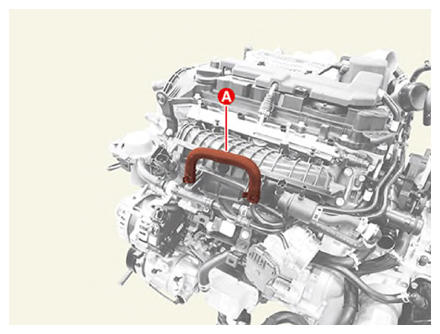

  7. Disconnect the vacuum pipe hose (A).
    G13664350Courtesy of KIA MOTORS AMERICA, INC.
    G13664351Courtesy of KIA MOTORS AMERICA, INC.

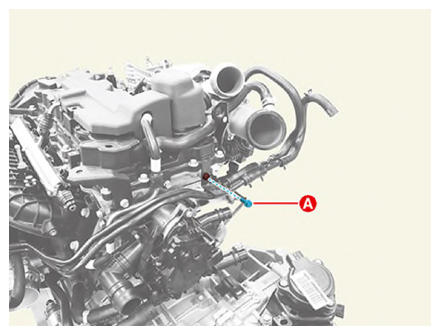

  8. Remove the vacuum pipe bolts (A)
    G13664352Courtesy of KIA MOTORS AMERICA, INC.
    G13664353Courtesy of KIA MOTORS AMERICA, INC.

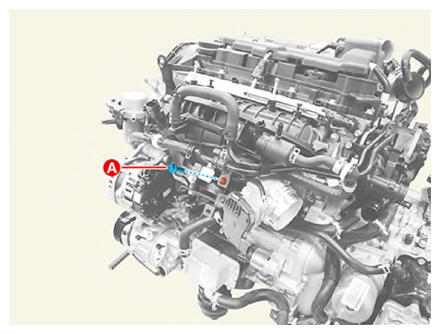

  9. Remove the air breather pipe bolt (A).

    Tightening torque:

    9.8-11.8 N.m (1.0 - 1.2 kgf.m, 7.2-8.7 lb.ft)

    G13664354Courtesy of KIA MOTORS AMERICA, INC.

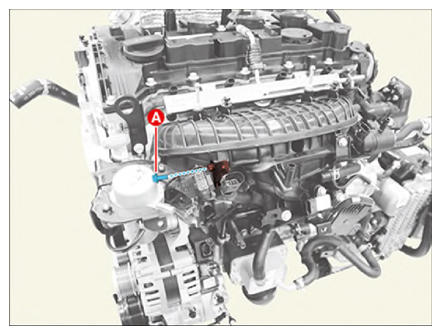

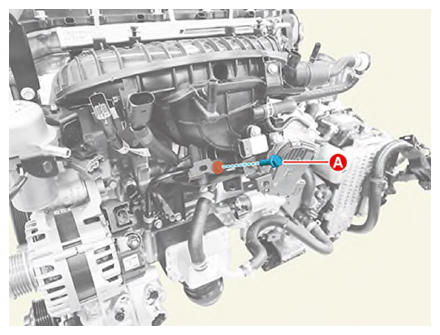

  10. Remove the wiring bracket bolt (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13664355Courtesy of KIA MOTORS AMERICA, INC.
  11. Remove the electronic throttle control (ETC) module.

    (Refer to Engine Control/Fuel System - "ETC (ELECTRONIC THROTTLE CONTROL) SYSTEM ")

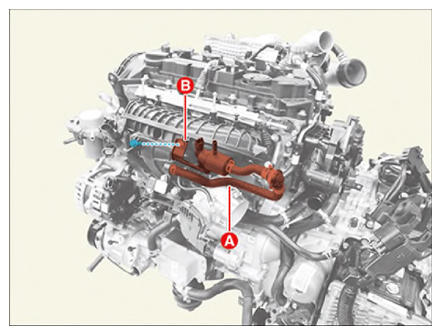

  12. Remove the purge control solenoid valve (PCSV) hose (A) and bracket (B).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13664356Courtesy of KIA MOTORS AMERICA, INC.

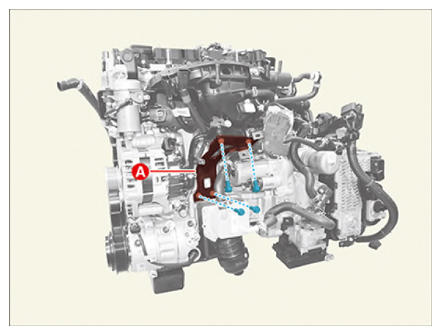

  13. Remove the intake manifold stay (A).

    Tightening torque:

    18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

    G13664357Courtesy of KIA MOTORS AMERICA, INC.

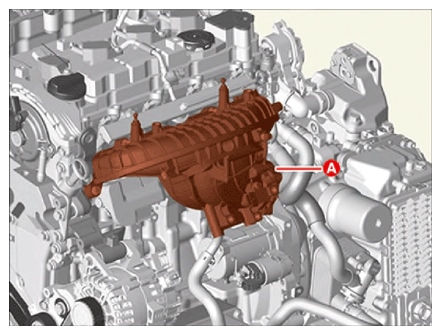

  14. Remove the intake manifold (A) with the gasket.

    Tightening torque:

    18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

    G13664358Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Be careful not to allow the foreign substances to enter the inlet port.

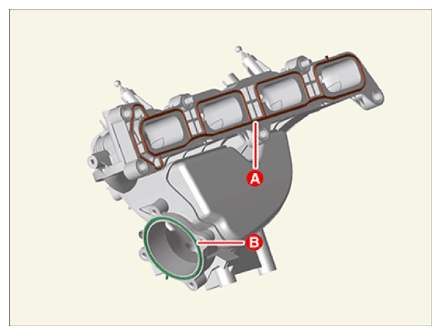

    • Do not reuse the intake manifold gasket (A) and ETC (Electronic Throttle Control) module gasket (B).
      G13664359Courtesy of KIA MOTORS AMERICA, INC.
  15. Install in the reverse order of removal.

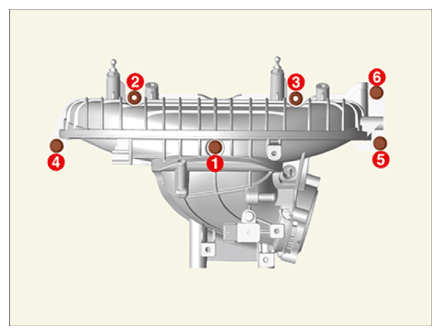

    NOTE: When installing the intake manifold, tighten the bolts and nuts with pre-torque first, and then tighten the bolts and nuts with the specified torque as the sequence shown.
    Fig 1: Intake Manifold Bolts And Nuts Tightening Sequence
    G13664360Courtesy of KIA MOTORS AMERICA, INC.
