Repair Procedures: Installation

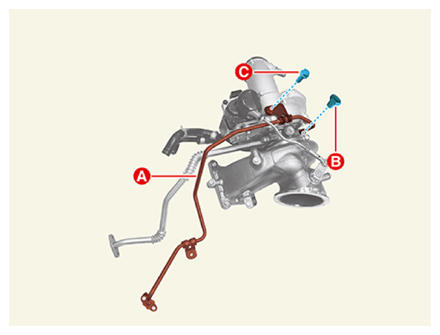

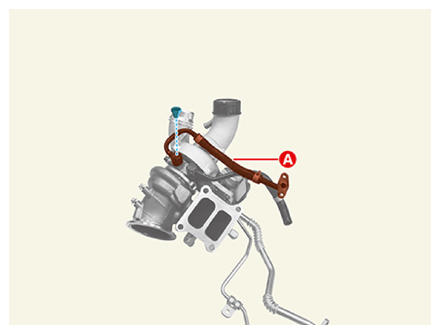

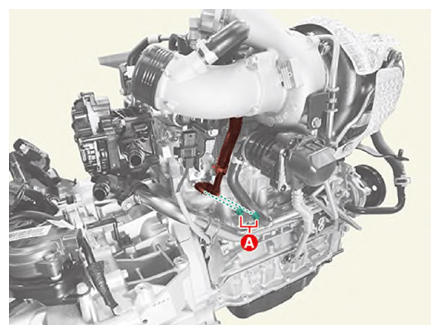

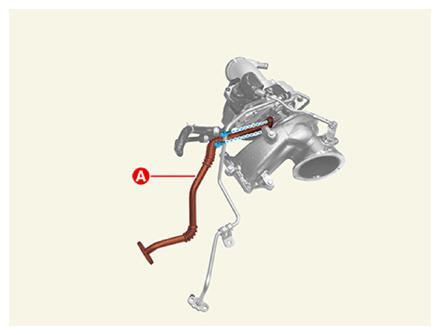

Install the oil feed pipe (A).
Tightening torque:

Bolt (B):

27.5 - 31.4 N.m (2.8 - 3.2 kgf.m, 20.3 - 23.1 lb.ft)

Bolt (C):

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

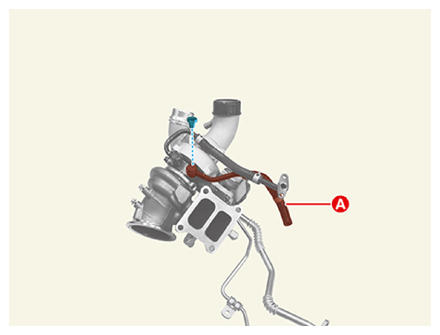

Install the oil drain pipe (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

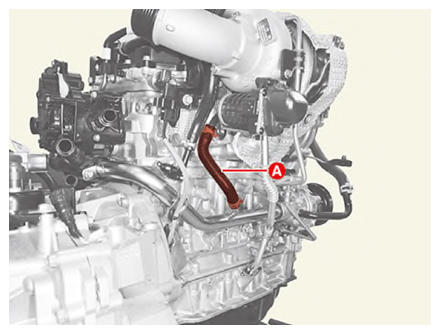

Install the water return hose & pipe (A).
Tightening torque:

26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install the water feed hose & pipe (A).
Tightening torque:

26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

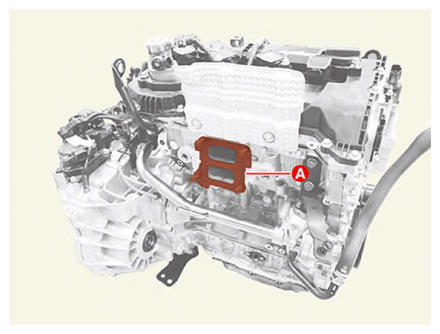

Install the turbo manifold module gasket (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Always use a new turbo manifold module gasket.

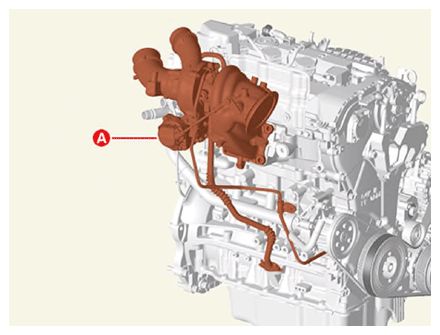

Install the turbo manifold module (A).
Tightening torque:

49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Be careful not to crush the oil feed pipe and hose as damaged oil feed pipe and hose may result in damaged turbocharger due to insufficient turbocharger oil supply.
- When installing, pretighten the nuts in the order shown below and then completely tighten the bolts to specified torque in the order below.

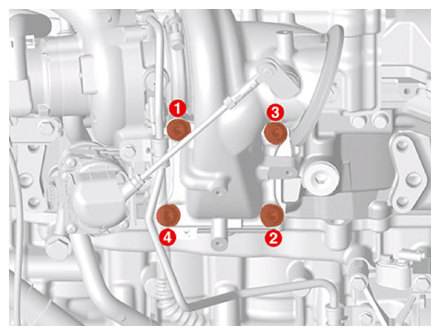

  Fig 1: Exhaust Manifold Nuts Tightening Sequence
  Courtesy of KIA MOTORS AMERICA, INC.

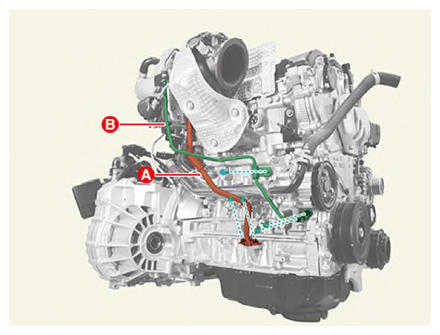

Remove the oil drain pipe (A) and oil feed pipe (B).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install the tubo charger water feed pipe & hose nuts (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install the tubo charger water return hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

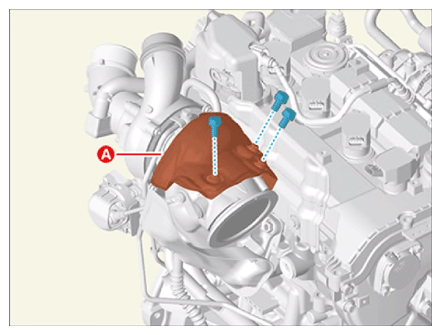

Install the lower heat protector (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

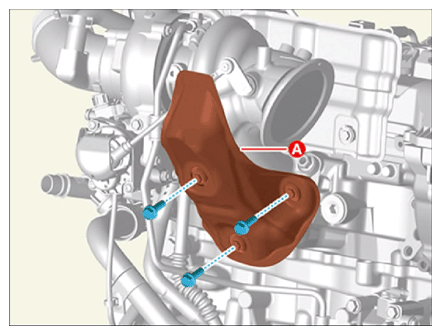

Install the upper heat protector (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

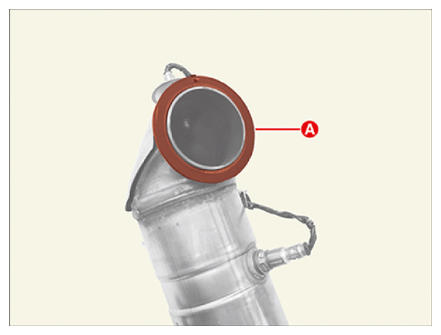

Install the warm-up catalytic converter (WCC) gasket (A).

G13664395

Courtesy of KIA MOTORS AMERICA, INC.

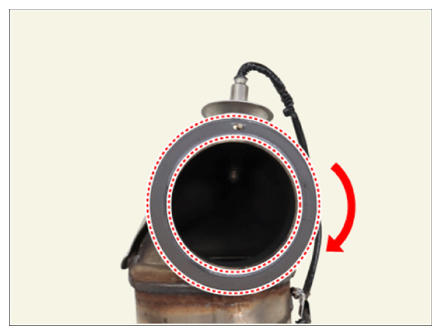

NOTE: Align the gasket hole with the pin, then rotate clockwise to secure the gasket.

G13664396

Courtesy of KIA MOTORS AMERICA, INC.

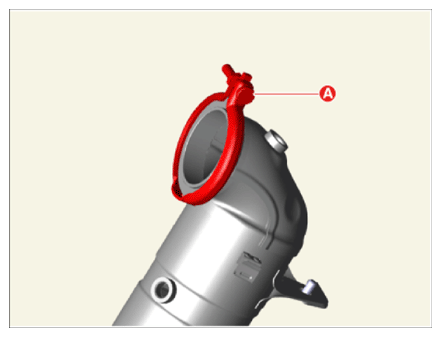

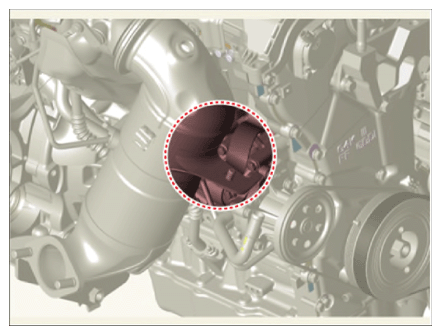

Install the clamp (A) on the warm-up catalytic converter (WCC).

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Always use a new clamp
- If the clamp is spread too much, clamp deformation can occur, spread it to the minimum within the length of the bolt when installing.
Hang the WCC to the hole to secure it before installing.

Courtesy of KIA MOTORS AMERICA, INC.

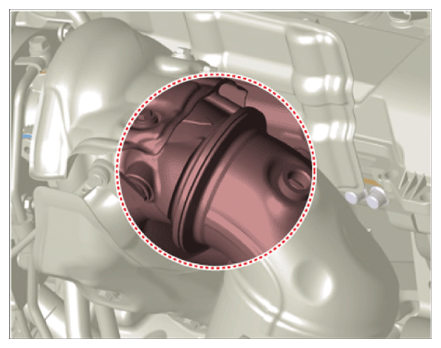

Check that the warm-up catalytic converter (WCC) and turbo charger surface is matched.

G13664399

Courtesy of KIA MOTORS AMERICA, INC.

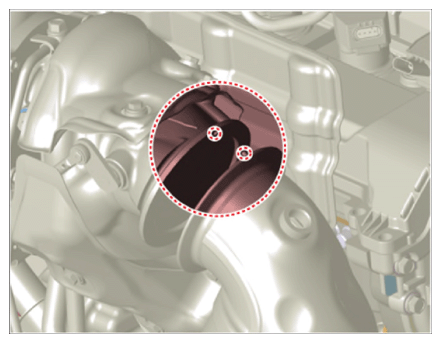

NOTE: Fit the groove as shown below when installing.

G13664400

Courtesy of KIA MOTORS AMERICA, INC.

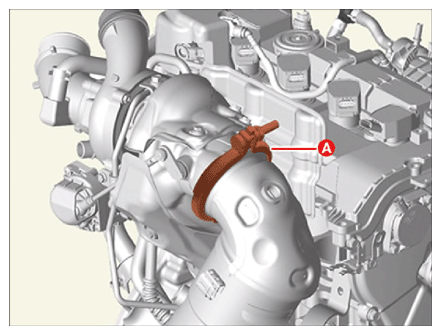

Install the clamp (A).

Tightening torque:

13.5 - 16.5 N.m (1.38 - 1.68 kgf.m, 10.0 - 12.2 lb.ft)

G13664401

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Install the clamp first before installing the other parts.

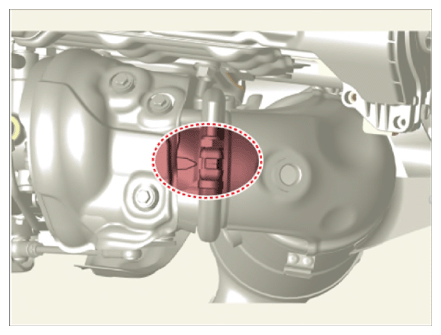

Align the center of the clamp head in the direction of the arrow of the turbo.

G13664402

Courtesy of KIA MOTORS AMERICA, INC.

Check the clamp condition.

Normal	Over torque	Under torque
Courtesy of KIA MOTORS AMERICA, INC.	Courtesy of KIA MOTORS AMERICA, INC.	Courtesy of KIA MOTORS AMERICA, INC.

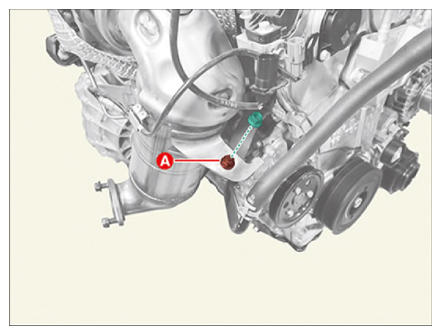

Install the warm-up catalytic converter (WCC) upper stay nut (A).
Tightening torque:

39.2 - 44.1 N.m (4.0 - 4.5 kgf.m, 28.9 - 32.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

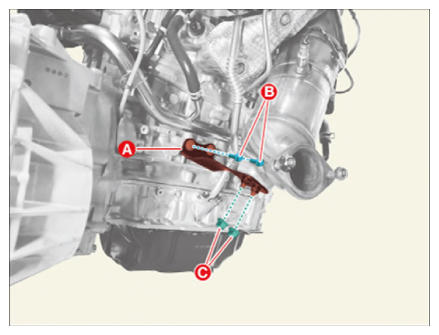

Install the warm-up catalytic converter (WCC) lower stay (A).
Tightening torque:

Bolts (B): 18.6 - 27.5 N.m (1.9 - 2.8 kgf.m, 13.7 - 20.3 lb.ft)

Nuts (C): 39.2 - 44.1 N.m (4.0 - 4.5 kgf.m, 28.9 - 32.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install the front muffler.
(Refer to Intake and Exhaust System - "MUFFLER ")
Install in the reverse order of removal.
