Removal and installation: Notes

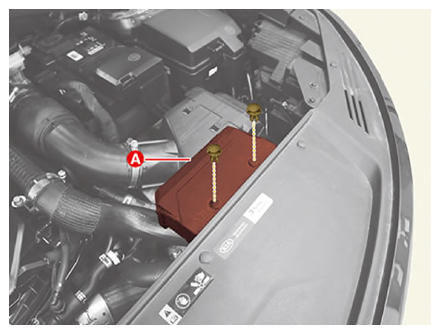

  1. Remove the air duct (A).
    G13664330Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the engine cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE COVER ")

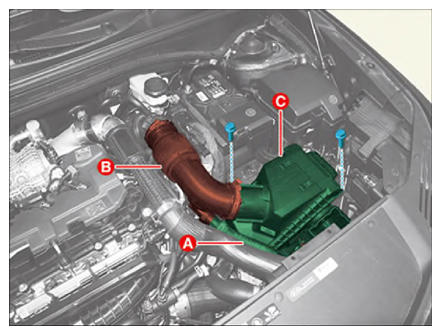

  3. Remove the air cleaner assembly.
    1. Disconnect the recirculation solenoid valve hose (A).
    2. Disconnect the intake hose (B).

      Tightening torque:

      Hose clamp: 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft, 26.0 - 43.4 lb.in)

    3. Remove the air cleaner assembly (C).

      Tightening torque:

      7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

      G13664331Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
