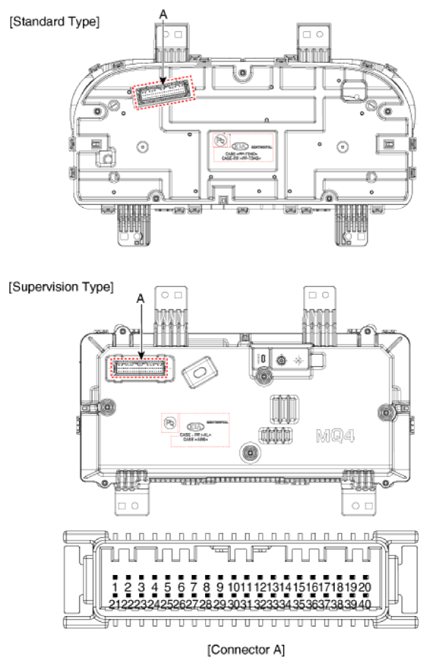

| 1 |
Signal 3 ground |
21 |
Trip switch (-) input |
| 2 |
Illumination (-) |
22 |
Trip switch 1 (+) input |
| 3 |
Rheostat switch (Down) input |
23 |
Trip switch 2 (+) input |
| 4 |
Rheostat switch (Up) input |
24 |
Drive mode switch (CW)_input |
| 5 |
Detent |
25 |
Drive mode switch (CCW)_input |
| 6 |
AT ('P' Position) |
26 |
Speaker (+) output |
| 7 |
AT ('R' Position) |
27 |
Speaker (-) output |
| 8 |
AT ('N' Position) |
28 |
- |
| 9 |
AT ('D' Position) |
29 |
MM-CAN (Low) |
| 10 |
AT ('S' Position) |
30 |
MM-CAN (High) |
| 11 |
- |
31 |
Engine run state output |
| 12 |
Vehicle speed output |
32 |
C-CAN (High) |
| 13 |
Alternator input |
33 |
C-CAN (Low) |
| 14 |
Fuel sender (+) input |
34 |
- |
| 15 |
- |
35 |
IGN3 |
| 16 |
Fuel sender (-) input |
36 |
- |
| 17 |
Water separator (+) Input |
37 |
Ground (Signal1) |
| 18 |
General type: Air bag (+) input/Supervision type: - |
38 |
- |
| 19 |
Oil press switch input |
39 |
IGN1 |
| 20 |
- |
40 |
Battery (+) |
