Repair Procedures: Removal

NOTE: When prying with a flat-head screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

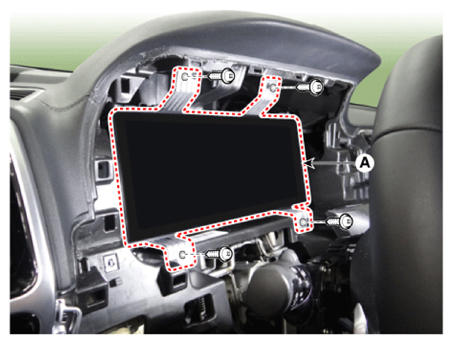

  3. Remove the instrument cluster (A) by removing the mounting screws.
    G13663229Courtesy of KIA MOTORS AMERICA, INC.

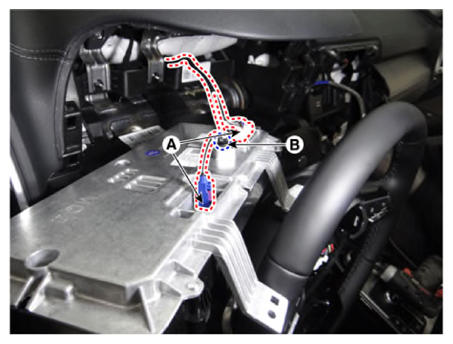

  4. Disconnect the instrument cluster connectors (A) and the fixing clip.
    G13663230Courtesy of KIA MOTORS AMERICA, INC.
