Repair Procedures: Removal

NOTE:
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the cluster assembly.

    (Refer to Indicators And Gauges - "INSTRUMENT CLUSTER ")

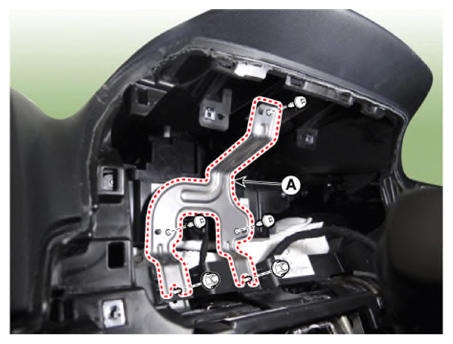

  2. Remove the crash pad support bracket (A) by removing the mounting screws and nuts.
    G13663206Courtesy of KIA MOTORS AMERICA, INC.

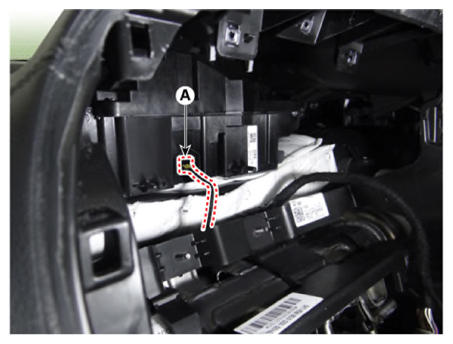

  3. Disconnect the head up display unit connector (A).
    G13663207Courtesy of KIA MOTORS AMERICA, INC.

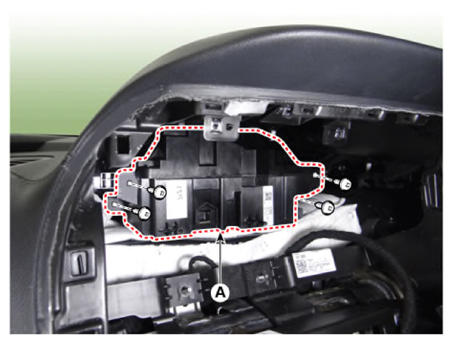

  4. Remove the head up display unit (A) by removing the mounting screws.
    G13663208Courtesy of KIA MOTORS AMERICA, INC.
