Repair Procedures: Inspection

If a part of the head up display image is distorted or it is not at eye level with the driver, the diagnostic system (KDS) can be used to carry out calibration.

Calibration is required:
- After replacing the head-up display unit
- When the image is distorted after replacing the windshield (double vision removal film built-in glass)
- When the HUD mounted main crash pad is removed/installed or replaced.
- When the image setting location of the HUD unit is not at eye level of the driver resulting in out of focus image.

Calibration items

No	Image calibration functions	Calibration cases

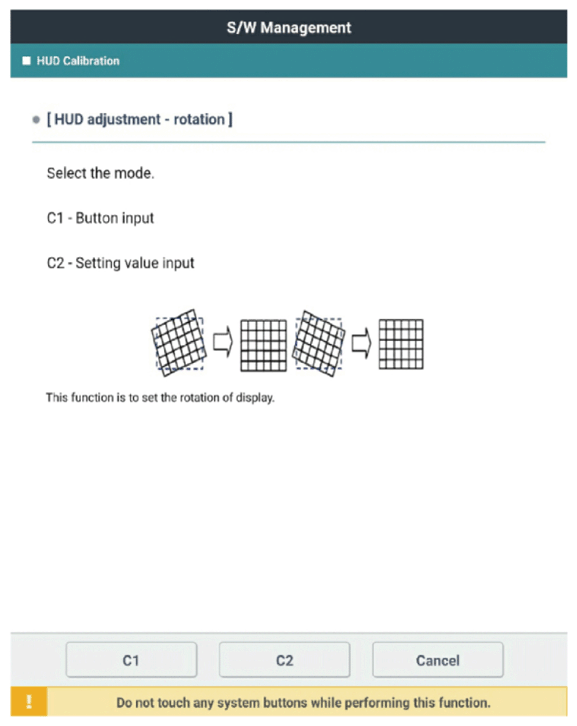

1	Can calibrate clockwise/counter clockwise to center image	Courtesy of KIA MOTORS AMERICA, INC.
2	Waveform: Calibrate vertically to center.	Courtesy of KIA MOTORS AMERICA, INC.
3	Slanted (up/down): Calibrate along a vertical inclination.	Courtesy of KIA MOTORS AMERICA, INC.
4	Slanted (left/right): Calibrate along a horizontal inclination.	Courtesy of KIA MOTORS AMERICA, INC.
5	Parallel compensation	Courtesy of KIA MOTORS AMERICA, INC.
6	Up/down movement of indicated location: Calibrate to driver's level.	Courtesy of KIA MOTORS AMERICA, INC.
7	Initialization: Return to previous status before calibration.

Calibration procedure

Park the vehicle on a flat plane for accurate adjustment.
Make sure that there are no foreign materials on the windshield.
Connect the KDS to the vehicle, and select vehicle type and HUD system additional functions.

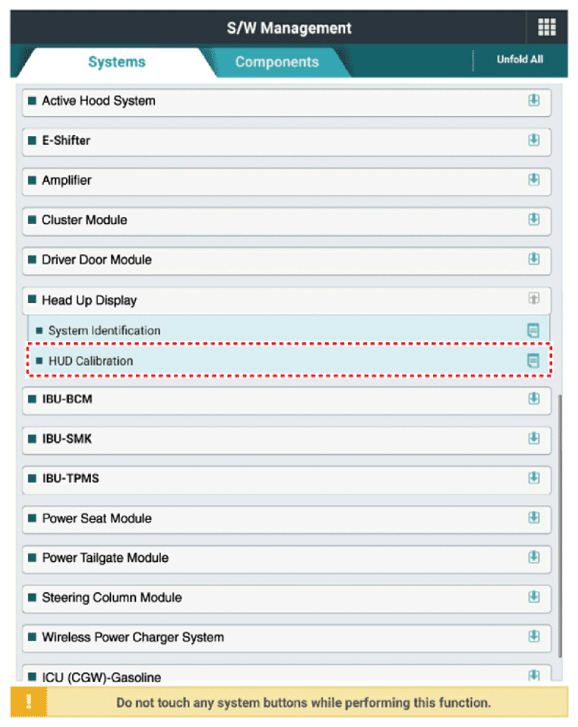

Under additional functions select 'HUD calibration'.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Before 'calibration', perform 'HUD calibration - initialization'.

NOTE: 'HUD calibration - initialization' must be performed prior to 'calibration'.

Courtesy of KIA MOTORS AMERICA, INC.

Select the necessary calibration items and perform 'HUD calibration'.

Courtesy of KIA MOTORS AMERICA, INC.

When calibration is completed, start and cut off the engine and check that the image calibration is complete.
