Repair Procedures: Replacement

NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front seat assembly (both sides).

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  2. Remove the front pillar trim

    (Refer to Interior Trim - "FRONT PILLAR TRIM ")

  3. Remove the crash pad driver's garnish

    (Refer to Crash Pad - "CRASH PAD GARNISH ")

  4. Remove the A/V Navigation.

    (Refer to Body Electrical System - "A/V NAVIGATION ")

  5. Remove the instrument cluster.

    (Refer to Body Electrical System - "INSTRUMENT CLUSTER ")

  6. Remove the crash pad center panel.

    (Refer to Crash Pad - "CRASH PAD CENTER PANEL ")

  7. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  8. Remove the multifunction switch assembly.

    (Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

  9. Remove center speaker.

    (Refer to Body Electrical System - "SPEAKER ")

  10. Remove front midrange speaker.

    (Refer to Body Electrical System - "SPEAKER ")

  11. Remove the main crash pad assembly (A) after removing the bolts and nuts.

    Tightening torque:

    16.7 - 23.5 N.m (1.7 - 2.4 Kgf.m, 12.3 - 23.1 lb.ft)

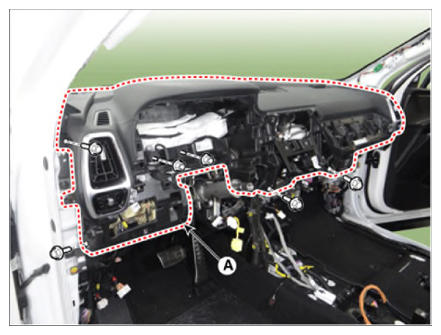

    [LH]

    G13662694Courtesy of KIA MOTORS AMERICA, INC.

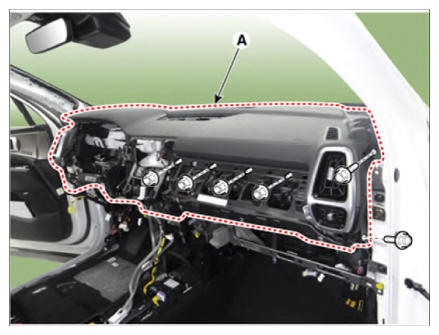

    [RH]

    G13662695Courtesy of KIA MOTORS AMERICA, INC.

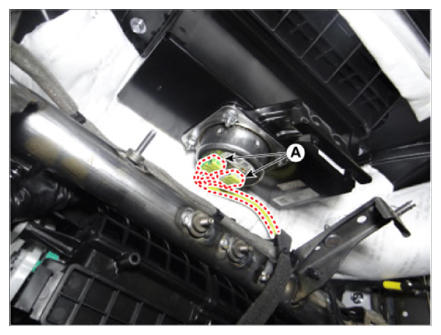

  12. Disconnect the passenger's airbag connector (A).
    G13662696Courtesy of KIA MOTORS AMERICA, INC.

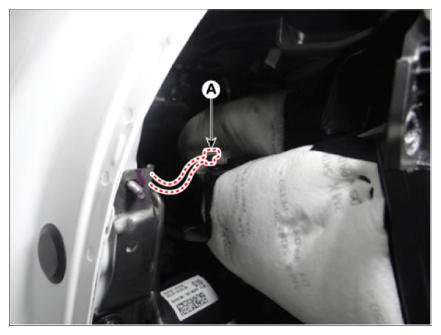

  13. Disconnect the duct sensor connector (A).
    G13662697Courtesy of KIA MOTORS AMERICA, INC.
  14. Install in the reverse order of removal.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin-type retainers).
