Repair Procedures: Replacement

NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  • Take care not to bend or scratch the trim and panels.

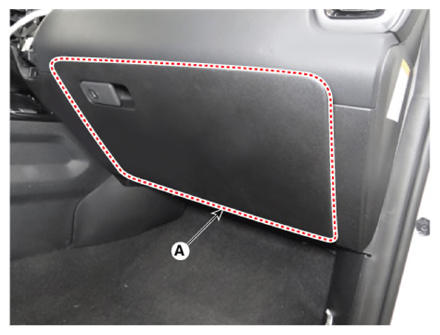

  1. Open the glove box (A)
    G13662684Courtesy of KIA MOTORS AMERICA, INC.

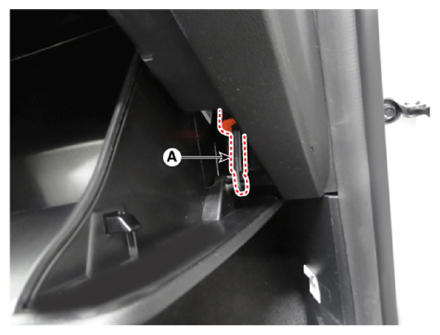

  2. Separate the air damper (A) from the glove box.
    G13662685Courtesy of KIA MOTORS AMERICA, INC.

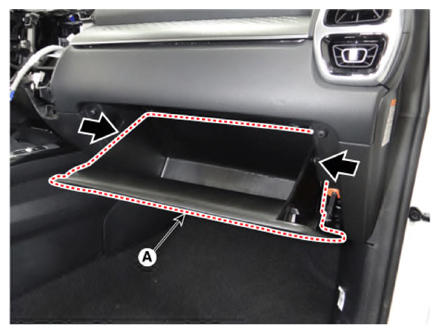

  3. Remove the glovebox (A) by pushing both sides inward.
    G13662686Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
