Repair Procedures: Replacement

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
Take care not to bend or scratch the trim and panels.

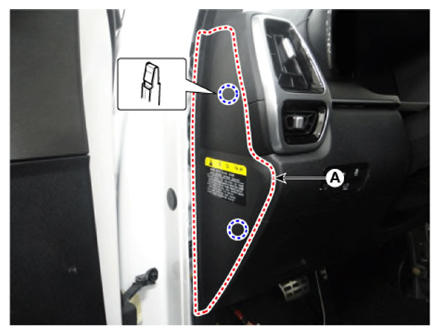

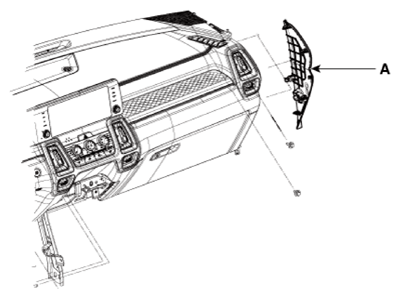

Remove the crash pad side cover (A) using a remover.
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips (or pin-type retainers).
