Crash pad passenger's garnish

NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the crash pad side cover [RH]

    (Refer to Crash Pad - "CRASH PAD SIDE COVER ")

  2. Remove the AVN, audio head unit.

    (Refer to Body Electrical System - "A/V NAVIGATION "

    (Refer to Body Electrical System - "AUDIO/AVN SYSTEM (EXCEPT HEV) "

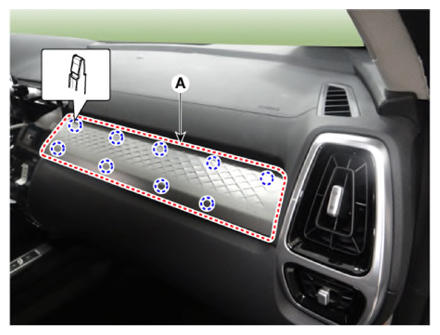

  3. Remove the crash pad mounting cover [RH] (A) using a flat-head screwdriver or remover.
    G13662680Courtesy of KIA MOTORS AMERICA, INC.

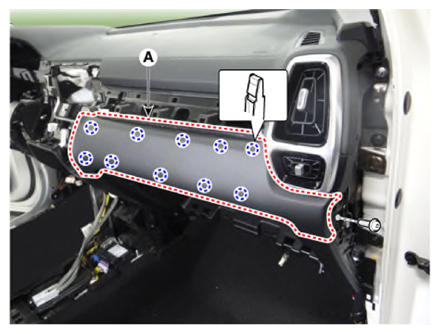

  4. Remove the crash pad passenger's (A) after removing the mounting screw.
    G13662681Courtesy of KIA MOTORS AMERICA, INC.

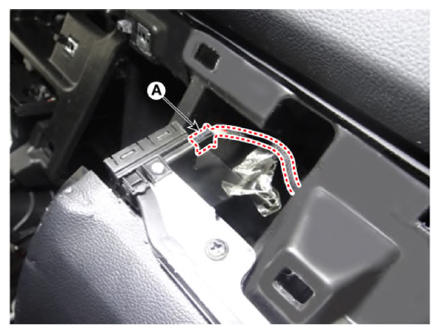

  5. Disconnect the crash pad garnish connector (A).
    G13662682Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.

    Information

    • Make sure connectors are connected properly and each rod is connected securely.
    • Replace any damaged clips (or pin-type retainers).
