Repair Procedures: Replacement

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
Take care not to bend or scratch the trim and panels.

Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD LOWER PANEL ")
Remove the audio/AVN head unit.
(Refer to Body Electrical System - "A/V NAVIGATION ")
Lower the steering wheel.

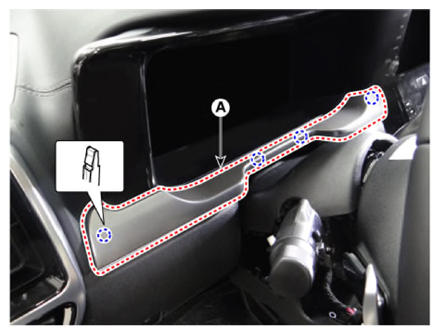

Remove the crash pad side mounting cover [LH] (A) by Using the remover.

Courtesy of KIA MOTORS AMERICA, INC.

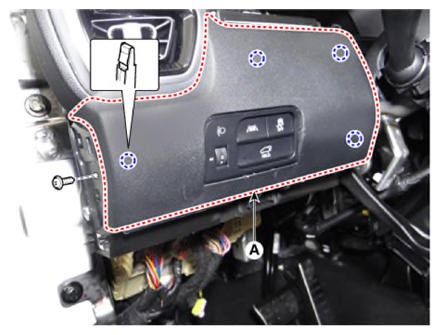

Remove the crash pad driver's garnish after removing the mounting screw.

Courtesy of KIA MOTORS AMERICA, INC.

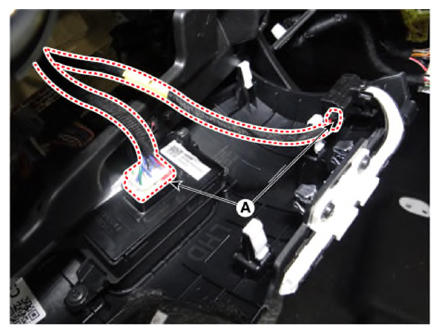

Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

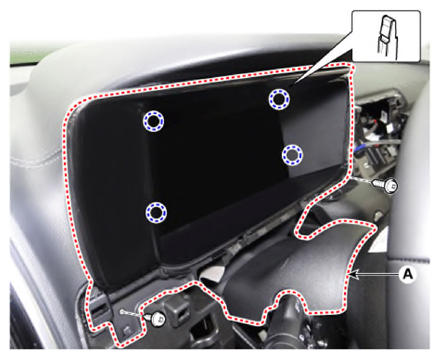

Remove the cluster fascia panel after removing the mounting screw.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips (or pin-type retainers).
