Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal.

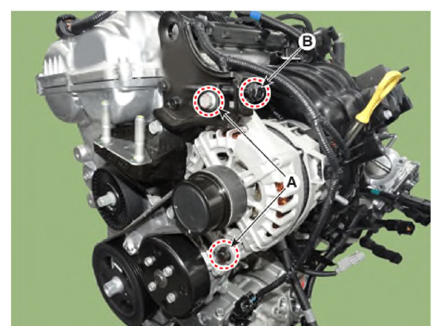

- Loosen the alternator mounting bolts (A).
- Loosen the adjusting bolt (B) clockwise in loosen tension.
 Courtesy of KIA MOTORS AMERICA, INC.
|

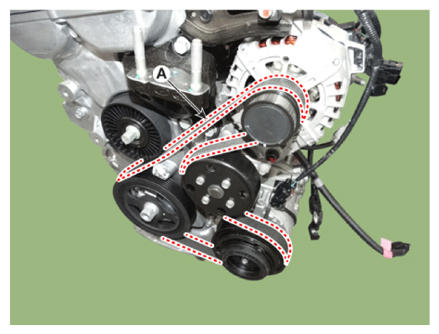

- Remove the drive belt (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
