Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Remove the drive belt.
(Refer to Drive Belt System- "DRIVE BELT ")

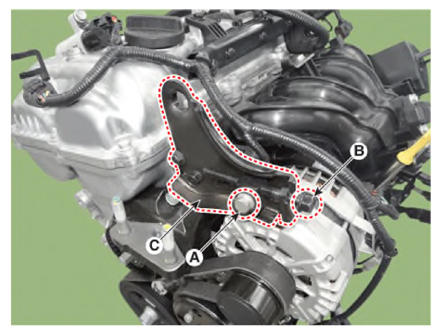

Remove the alternator mounting bolt (A) and tension adjust bolt (B).
Remove the alternator bracket (belt tensioner) (C).
Tightening torque

[Part No: 11403-08407B]

24.5 - 26.9 N.m (2.48 - 2.74 kgf.m, 18.1 - 19.8 lb.ft)

[Part No: 11405-08406K]

26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
