Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the drain plug and drain the engine coolant.

    (Refer to Cooling System - "COOLANT ")

  2. Remove the drive belt.

    (Refer to Drive Belt System - "DRIVE BELT ")

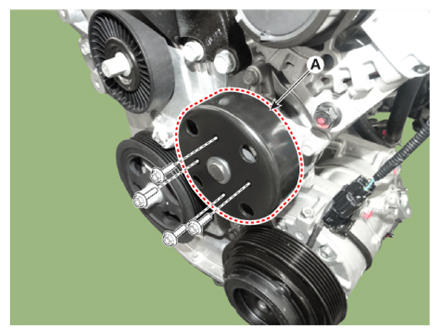

  3. Remove the water pump pulley (A).
    G13480064Courtesy of KIA MOTORS AMERICA, INC.

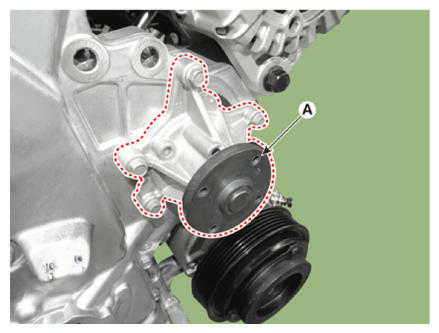

  4. Remove the water pump (A) with gasket.
G13480065Courtesy of KIA MOTORS AMERICA, INC.
