Removal And Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Disassembly of the thermostat would have an adverse effect, causing a lowering of cooling efficiency.

Drain engine coolant.
(Refer to Cooling System - "COOLANT ")

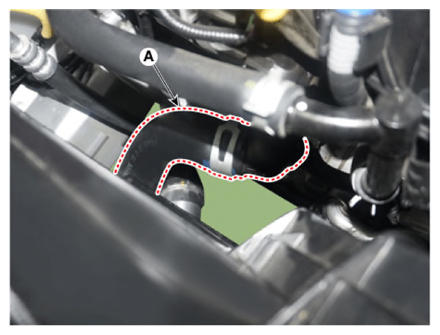

Disconnect the radiator lower hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

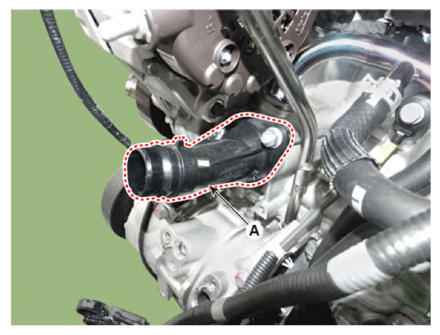

Remove the water inlet fitting (A).
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

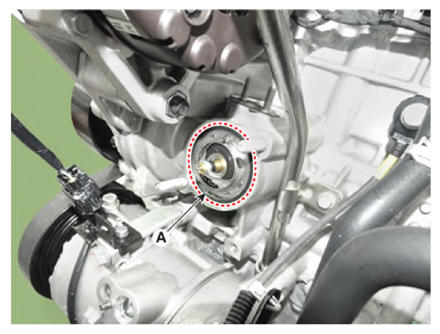

Remove the thermostat (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

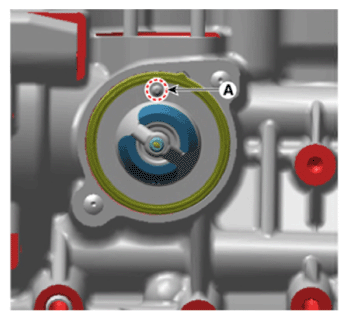

NOTE: Install the thermostat jiggle valve (A) facing upwards.

Courtesy of KIA MOTORS AMERICA, INC.
Fill the radiator with coolant.
(Refer to Cooling System - "COOLANT ")
Start engine and check for leaks.
Recheck engine coolant level.
