Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Loosen the drain plug and drain the coolant.
(Refer to Cooling System - "COOLANT ")

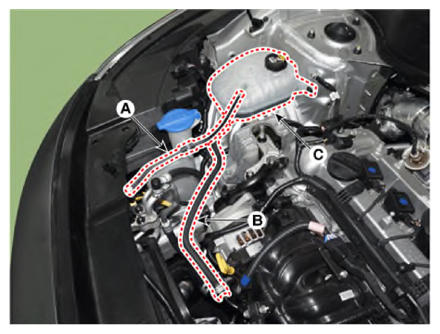

Disconnect the over flow hose (A) and reservoir tank water hose (B).
Remove the reservoir tank (C).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
