Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Loosen the drain plug, and drain the coolant.
(Refer to Cooling System - "COOLANT ")
Remove the cooling fan.
(Refer to Cooling System - "COOLING FAN ")

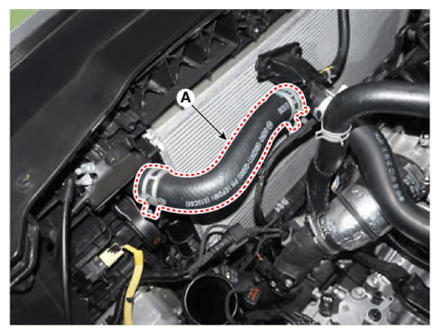

Disconnect the radiator upper hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

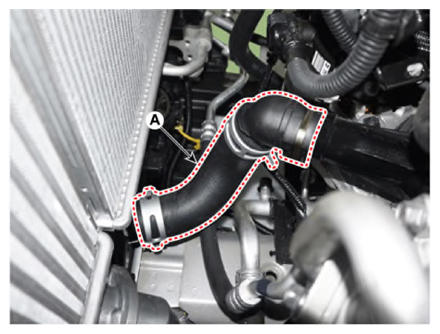

Disconnect the radiator lower hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper assembly.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")
Remove the intercooler.
(Refer to Intake and Exhaust System - "INTERCOOLER ")

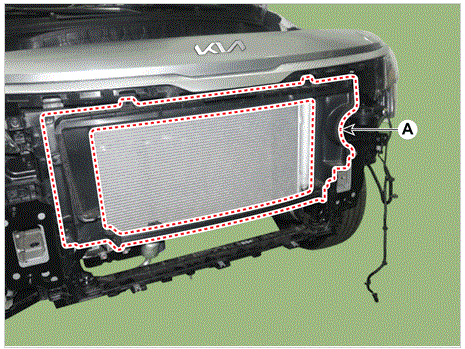

Remove the radiator air guard (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

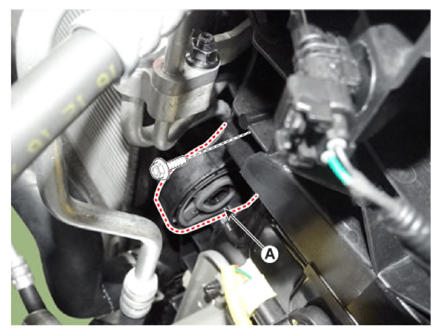

Remove the radiator upper mounting bracket (A).
Tightening torque:

7.8 - 11.8 Nm (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

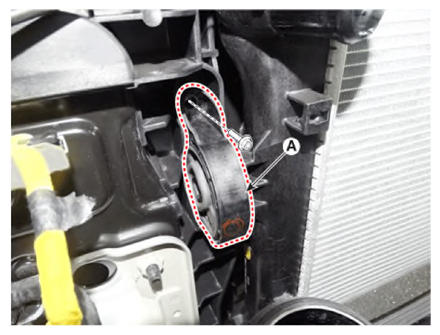

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
Separate the condenser from the radiator.

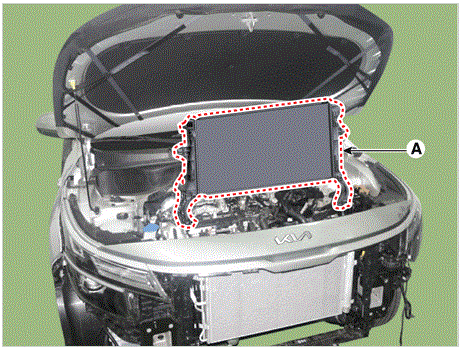

Pull the radiator (A) upward and remove it from engine room.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Fill the radiator with coolant.
(Refer to cooling system - "COOLANT ")
Start engine and check for leaks.
Recheck engine coolant level.
