Cooling Fan Controller (PWM)

WARNING: This page is about a different variant/trim than selected.

Remove the air duct.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

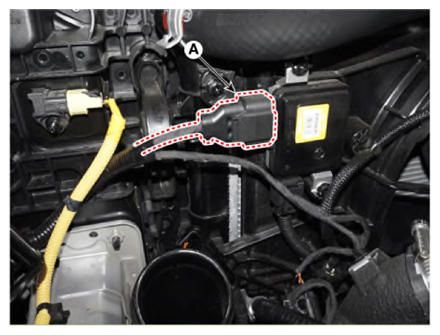

Disconnect the wiring harness connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

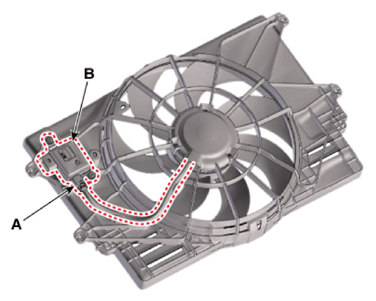

Disconnect the fan motor connector (A) and then remove the cooling fan controller (PWM) (B) from the cooling fan shroud.
Tightening torque:

4.9 - 8.3 N.m (0.50 - 0.85 kgf.m, 3.6 - 6.1 lb.ft, 43.4 - 73.7 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
