Cooling Fan Assembly

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.
Remove the air duct and air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

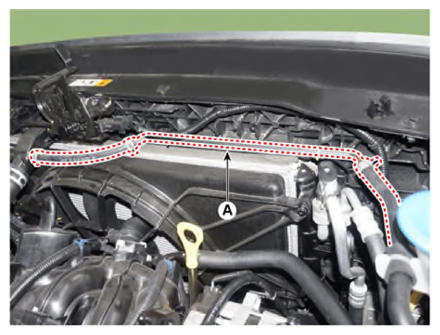

Disconnect the over flow hose and pipe (A).

Courtesy of KIA MOTORS AMERICA, INC.

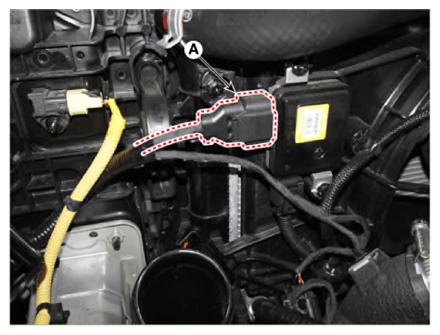

Disconnect the wiring harness connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

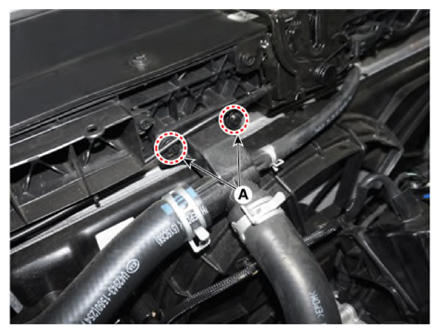

Remove the filler neck assembly mounting bolts (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.0 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

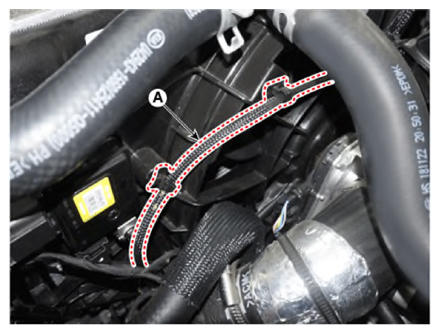

Disconnect the RCV solenoid hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the hood latch assembly.
(Refer to Body (Interior and Exterior) - "HOOD LATCH ")

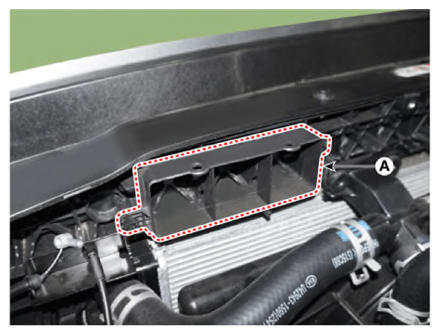

Remove the air intake shield (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.0 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

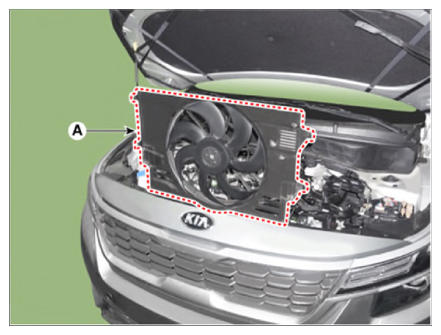

Loosen the mounting bolts and then remove the cooling fan (A).
Tightening torque:

4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb.ft, 43.4 - 69.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
