Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

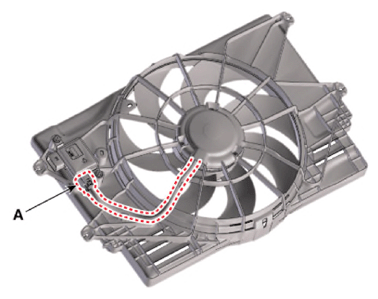

Disconnect the fan motor connector (A) from the cooling fan controller (PWM).

Courtesy of KIA MOTORS AMERICA, INC.

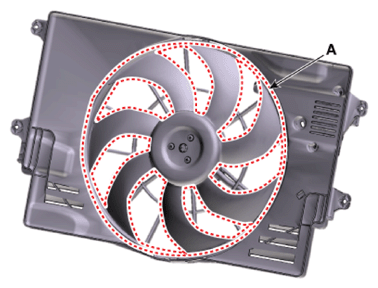

Remove the cooling fan (A) from the cooling fan shroud.
Tightening torque:

2.7 - 3.2 N.m (0.28 - 0.33 kgf.m, 2.0 - 2.4 lb.ft, 24.3 - 28.6 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

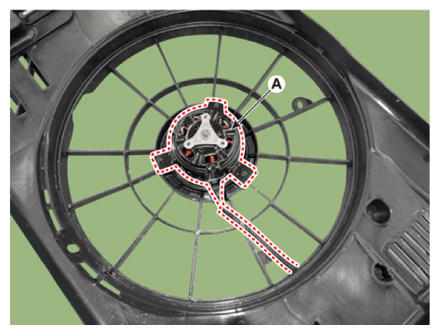

Loosen the screws and then remove the fan motor (A) from the cooling fan shroud.
Tightening torque:

3.9 - 5.7 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.0 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
