Replacement And Air Bleeding: Notes

WARNING: This page is about a different variant/trim than selected.

WARNING: Never remove the radiator cap when the engine is hot. Serious scalding could be caused by hot fluid under high pressure escaping from the radiator.

CAUTION: When pouring engine coolant, be sure to shut the relay box lid and not to let coolant spill on the electrical parts or the paint. If any coolant spills rinse it off immediately.

Make sure the engine and radiator are cool to the touch.

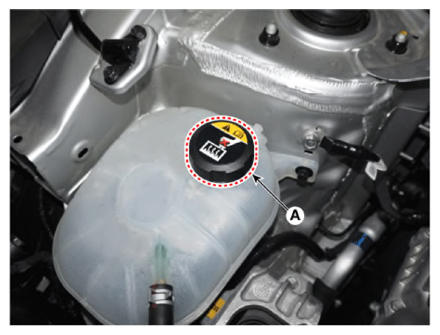

Remove the reservoir tank cap (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

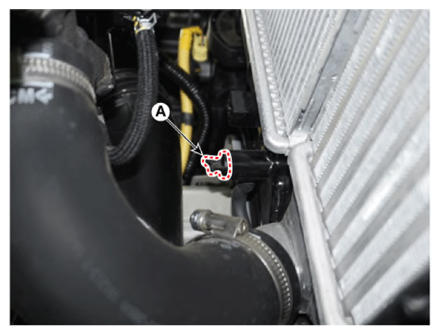

Loosen the drain plug (A), and drain the coolant.

Courtesy of KIA MOTORS AMERICA, INC.
Tighten the radiator drain plug securely.
After draining engine coolant in the reservoir tank, clean the tank.
