Front Muffler

WARNING: This page is about a different variant/trim than selected.

Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
Disconnect the battery negative terminal.

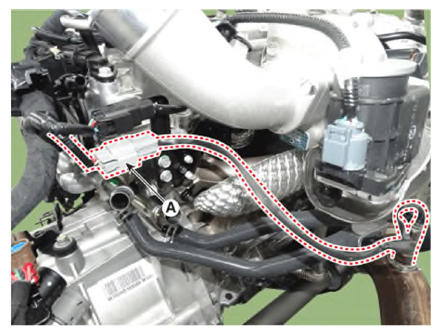

Disconnect the rear oxygen sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

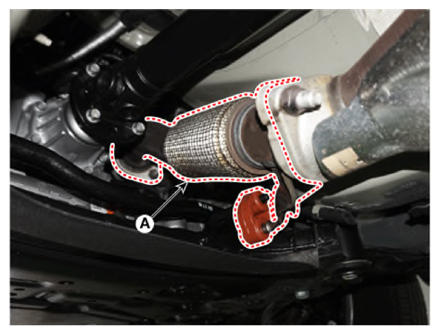

Remove the front muffler (A).
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

NOTE: When installing, replace with new gaskets.
