Replacement procedure of center muffler using clamp

Under warranty: Replace the center muffler assembly.

Out of warranty: The center muffler can be replaced in the procedure below.

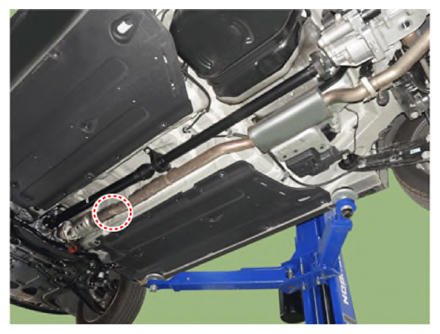

1. Check if the clamping part of the center muffler assembly is damaged or deformed.

   If the muffler is excessively corroded to clamp, replace the center muffler assembly.

   Courtesy of KIA MOTORS AMERICA, INC.

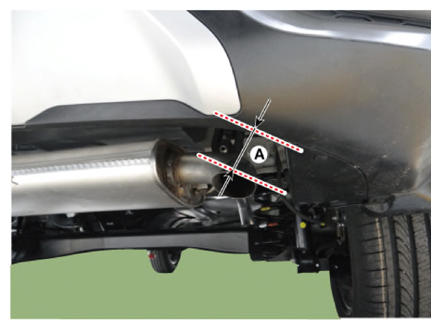

2. Record the gap (A) between the tail pipe and the rear bumper.

   Courtesy of KIA MOTORS AMERICA, INC.

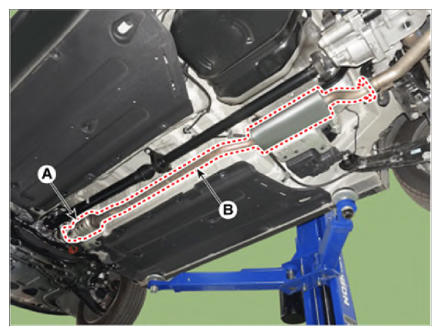

3. Remove the catalytic converter & center muffler assembly (A).

   Courtesy of KIA MOTORS AMERICA, INC.

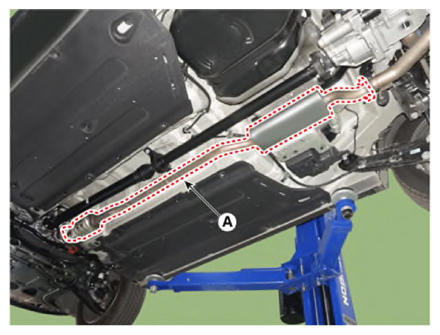

4. Remove the catalytic converter & center muffler assembly heat cover (A).

   Courtesy of KIA MOTORS AMERICA, INC.

5. Cut the center muffler as instructed below.

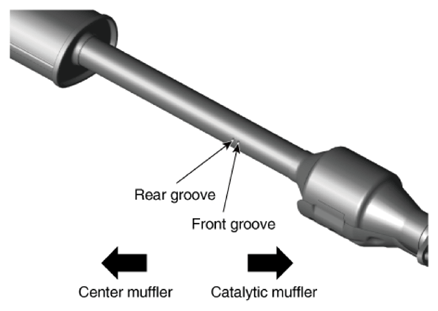

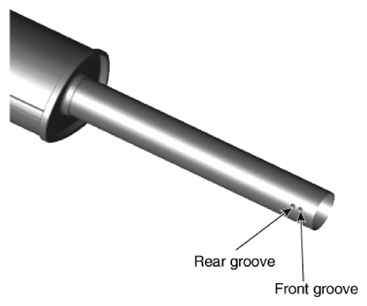

   • Cut the front groove of the muffler.

   Courtesy of KIA MOTORS AMERICA, INC.

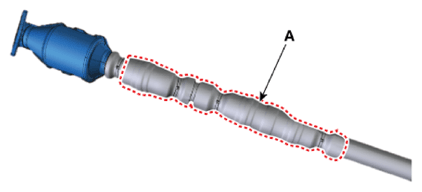

   [Replacement muffler]

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE:

   • To prevent a leak, remove the rust on the clamping part or the burr on the cutting part.
   • Cut the pipe vertically.

   Information

   • Pipe cutter available to cut the pipe vertically.

     Courtesy of KIA MOTORS AMERICA, INC.

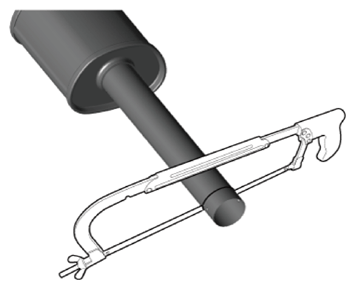

   • Use a hacksaw as the procedure below, if a pipe cutter is unavailable.

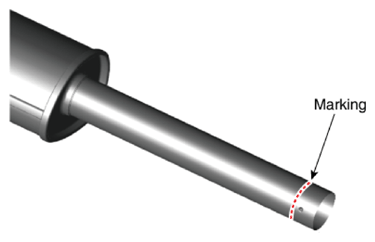

   1. Mark the cutting position to cut the pipe vertically.

      Courtesy of KIA MOTORS AMERICA, INC.

   2. Cut the pipe along the marking line by using hacksaw

   Courtesy of KIA MOTORS AMERICA, INC.

6. Install the center muffler.
   1. Install the catalytic converter (A) and the center muffler (B) for replacement by tightening the nuts lightly, not completely.

      Courtesy of KIA MOTORS AMERICA, INC.

      NOTE: When installing the muffler, replace the gasket with new one.

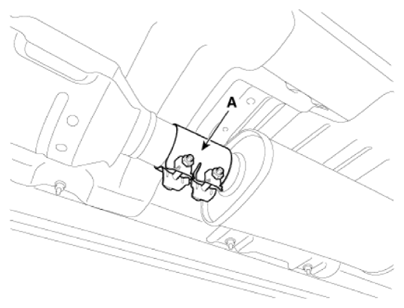

   2. Put the clamp (A) between the cutting part of each pipe and tighten the clamp lightly, not completely.

      Courtesy of KIA MOTORS AMERICA, INC.

   3. Tighten the catalytic converter and the center muffler with specified torque.

      Tightening torque:

      39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

   4. Compare the gap between the tail pipe (or tail trim) and the rear bumper with the record measured before removing the center muffler assembly.
      NOTE: If the tail pipe is installed differently compared to the initial position, the bumper might be damaged by the pipe heat or interfere between the tail pipe and the rear bumper.
   5. Do not tighten the clamp at a time. Tighten the clamp nuts to the specified torque, by turns.

      Tightening torque:

      17.6 - 23.5 N.m (1.8 - 2.4 kgf.m, 13.0 - 17.4 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE: Do not reuse the clamp that was tightened completely. It may cause leak to reuse the clamp that was tightened completely.
