Air Cleaner Element

WARNING: This page is about a different variant/trim than selected.

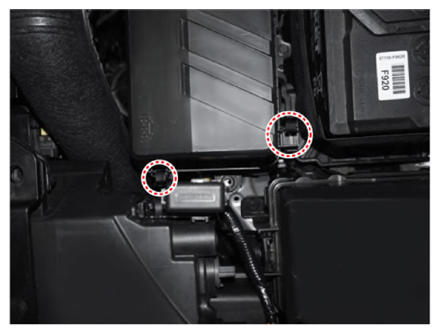

Open the air cleaner cover by unhooking the clamps.

Courtesy of KIA MOTORS AMERICA, INC.

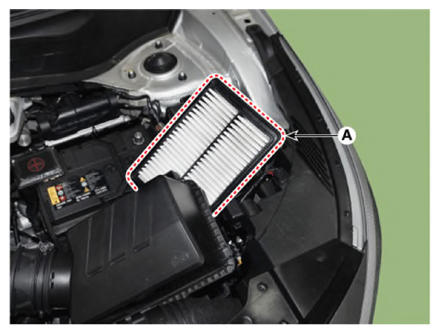

Replace the air cleaner element (A) with a new one.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If there are foreign substances inside the air cleaner assembly, wipe the inside of the air cleaner assembly and then replace the air cleaner element.
Close the air cleaner cover by hooking the clamps.

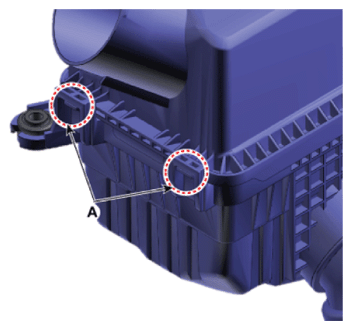

NOTE: Insert the hinge (A) and engage the clamp when mounting the air cleaner cover.

Courtesy of KIA MOTORS AMERICA, INC.
