Air Cleaner Assembly

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")

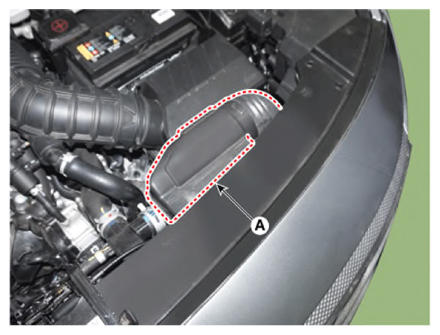

Remove the air duct (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the air cleaner assembly.

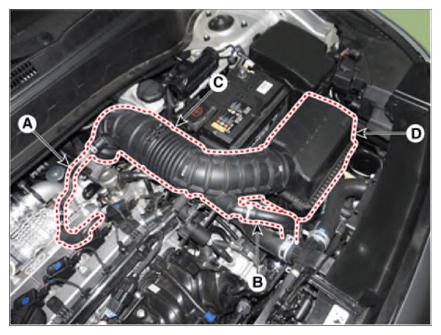

1. Disconnect the breather hose (A).
2. Disconnect the RCV hose (B).
3. Disconnect the air intake hose (C) and then remove the air cleaner assembly (D).
Tightening torque

Hose clamp bolt:

2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.1 - 3.6 lb.ft, 26.0 - 43.4 lb.in)

Air cleaner assembly bolts:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.0 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
