Section 5 (Charging System - 1.6L)
>>
DC DC Converter
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

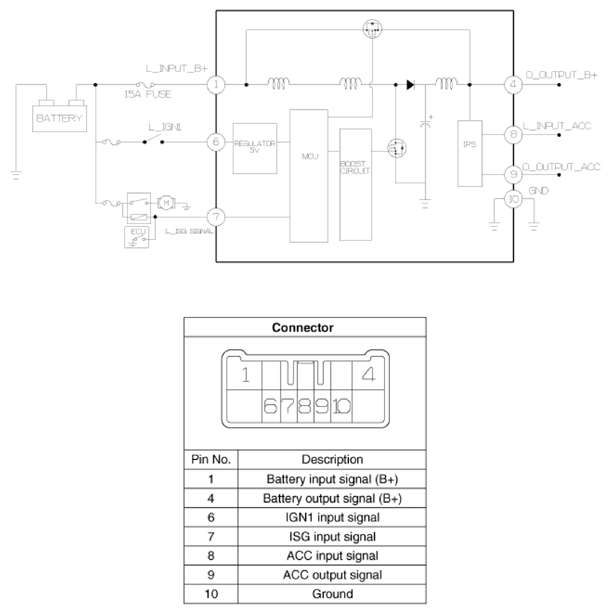

[200W]
Courtesy of KIA MOTORS AMERICA, INC.

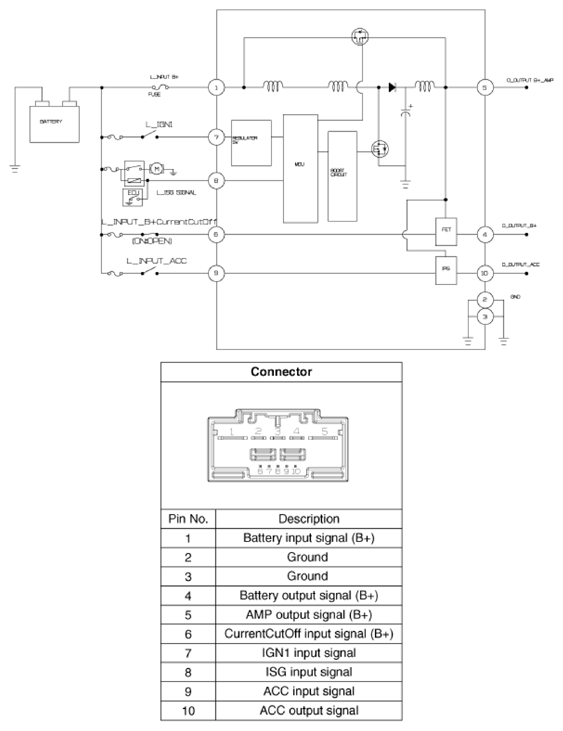

[450W]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
