Section 5 (Charging System - 1.6L): Battery: Specifications: Specification: Notes

• AGM60L - DIN

  Item	Specification
  Capacity [20 hr/5 hr] (AH)	60/48
  Cold Cranking Amperage (A)	640 (SAE)/640 (EN)
  Reserve Capacity (Min)	100
  Specific Gravity	1.30 - 1.32 [25°C (77°F)]
  Voltage (V)	12

• AGM70L - DIN

  Item	Specification
  Capacity [20 hr/5 hr] (AH)	70/56
  Cold Cranking Amperage (A)	760 (SAE)/760 (EN)
  Reserve Capacity (Min)	120
  Specific Gravity	1.30 - 1.32 [25°C (77°F)]
  Voltage (V)	12

Information

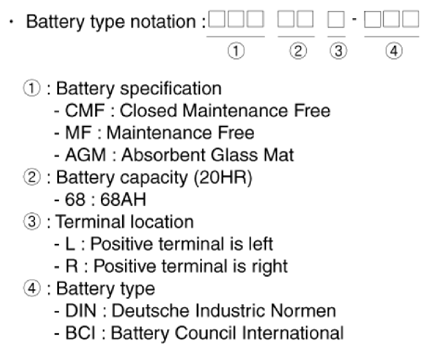

• Model type description

  Courtesy of KIA MOTORS AMERICA, INC.

• Cold Cranking Ampere (CCA): Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.

• The rating is the number of amps a new, fully charged battery can deliver at -18°C (-0.4°F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
• The higher the CCA rating, the greater the starting power of the battery.

• RESERVE CAPACITY (RC): Reserve Capacity is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.

• The rating is the number of minutes a battery at 26.7°C (80°F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
• The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.
