Battery Tray
WARNING: This page is about a different variant/trim than selected.
- Remove the ECM.
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

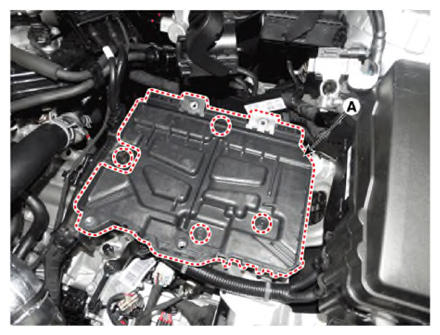

- Remove the battery tray (A) after loosening the mounting bolts
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)
