Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative (-) terminal.

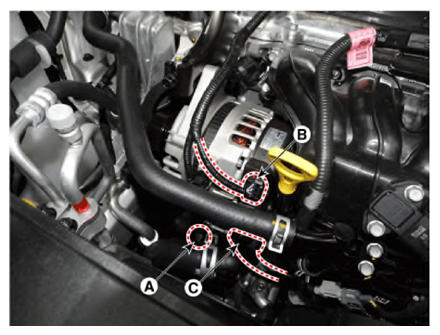

Disconnect the air compressor connector (A) and the alternator connector (B), and remove the cable from alternator "B" terminal (C).
Tightening torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

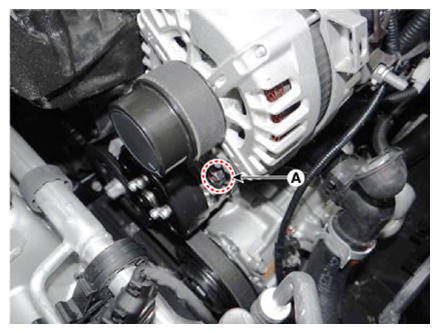

Loose the alternator by loosening the mounting lower bolt (A) lightly, not completely, to remove the drive belt.

Courtesy of KIA MOTORS AMERICA, INC.

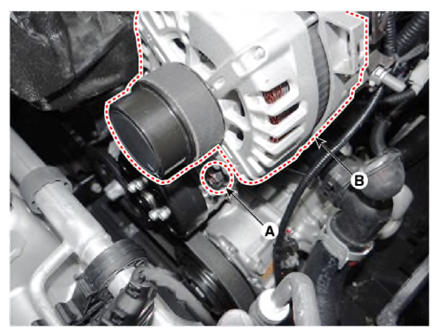

Loosen the mounting bolts (A) and then, turn the adjusting bolt (B) clockwise to loosen tension.
Tightening torque:

26.4 - 37.2 N.m (2.7 - 3.8 kgf.m, 19.5 - 27.4 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")

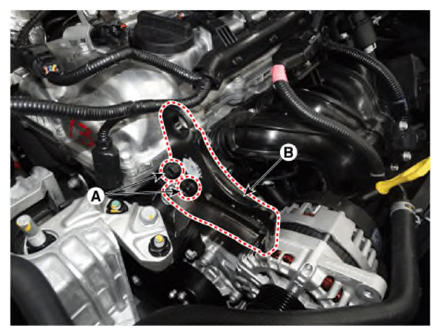

Remove the alternator brace bracket assembly (B) after loosening the mounting bolt (A).
Tightening torque:

24.3 - 26.9 N.m (2.5 - 2.7 kgf.m, 17.9 - 19.8 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

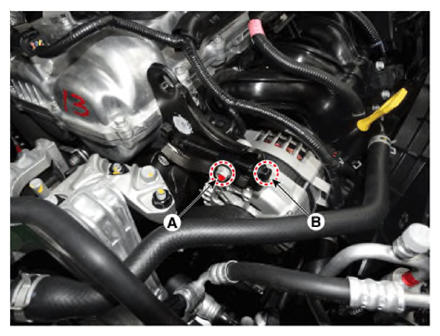

Remove the alternator mounting low bolt (A), and then remove the alternator (B).
Tightening torque:

29.4 - 41.2 N.m (3.0 ~ 4.2 kgf.m, 21.7 - 30.4 lb-ft)
