Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative (-) terminal.

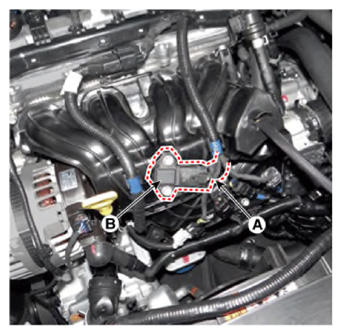

- Disconnect the manifold absolute pressure sensor connector (A).
- Remove the sensor (B) from the Intake manifold by loosening the mounting bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
