Component Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
CKPS connector | 2 (signal) | CMPS - In connector | 2 (signal) | Fig.1 |
| CMPS - Ex connector | 2 (signal) | OCV - In connector | 1 (control) | ||

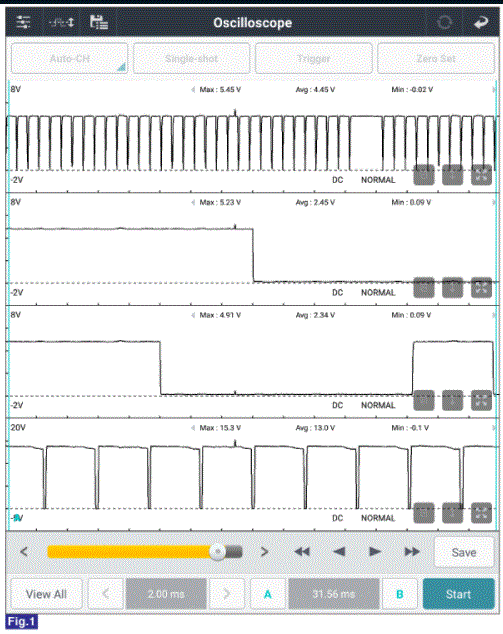

Fig.1) Normal waveforms of CKPS, CMPS - In/Ex, OCV - In at engine idle
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the CMPS and go to "VERIFICATION OF REPAIR " procedure.
